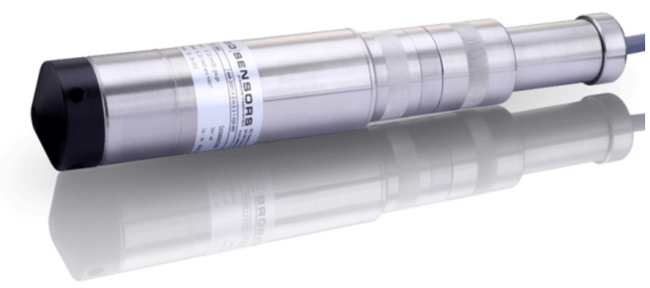

LMK 358H Stainless Steel Probe
Brand: BD SensorsThe detachable stainless steel probe LMK358H has been designed for level measurement in waste water, waste and higher viscosity media.
asic element is a capacitive ceramic sensor.
In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.
Features- Nominal pressure from 0 to 100 mH2O
- Output signals: 2-wire: 4-20 mA, others available
- Diameter 39.5 mm
- Cable and sensor section separable
- HART communication (setting of offset, span and damping)
- Permissible temperatures up to 85° C (185° F)
- High long-term stability
Specifications
Brand
Approvals & Certifications
- CE
- EMC: Emission & Immunity According to EN 61326, 2004/30/EU
- IBExU 10-ATEX-1186 x for DX15A-LMK 358H, 2014/34/EU
- IEC 60770
- REACH
- RoHS
- TÜV NORD
Diaphragm Material
- Ceramic Al₂O₃ 96 %, Al₂O₃ 99.9 %
Enclosure, Body Material
- 316L Stainless Steel, 1.4401
Environmental Protection
- IP68
Flange Material
- 316L Stainless Steel, 1.4401
Flange Size - 1” (DN 25)
- 1" (DN 25) - PN 40
Flange Size - 2” (DN 50)
- 2" (DN 50) - PN 40
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 16
Output
- 4-20 mA, 2-Wire
Pressure Range
- bar: 0.05 to 9.80
- kPa: 5.88 to 980.7
- meters WC: 0.6 to 100
- psi: 0.85 to 142.2
Pressure Type
- Gauge
- Chemical Industry
- Energy Industry
- Environmental Industry
