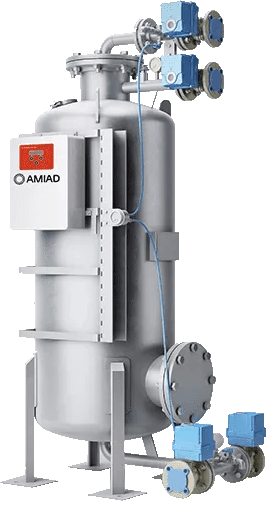

DVF Series High Efficiency Filtration System

Brand: Amiad Water Systems Ltd
Add Product to My Catalog

The DVF (Double Vortex Filter) is a unique line of multi-media vessels for industrial use with a patented vortex-generator, featuring high filtration velocity in robust stainless steel design, enabling longer filtration cycles and resistance to microbiological fouling. DVF is DWI certified – for drinking water standards.

The DVF provides a more effective water filtration than has previously been available due to its unique double vortex inlet which gives an unprecedented fine particle removal without the use of chemicals.
Features
  • All stainless steel vessel material construction, special alloys upon request
  • High performance filtration through a combination of unique design and specially formulated media
  • Up to 95% filtration efficiency of process water
  • Filtration of up to 4 times more water than conventional media filters, which achieve only 20 micron filtration
  • Shorter backwash times compared to conventional media filters
  • Cleans contaminated systems and improves performance
  • Up to 95% reduction in backwash loss of process water
  • Operational inlet pressure of only 1 bar
  • High filtration performance during high flow rates
  • Applications: intake water, full/side stream, heat exchangers protection, recycling water, pre RO/UV, drinking water, polishing and more

Specifications

Brand

Flow Rate

  • Up to 50 m³/h (220 gpm)

Operating Pressure

  • Minimum 1 bar (14.5 psi)

Maximum Backwash Flow

  • 1.7 to 22 m³/h

Connection

  • 1" DN 25 ISO PN 10 Flanged
  • 1-1/2" DN 40 ISO PN 10 Flanged
  • 2" DN 50 ISO PN 10 Flanged
  • 3" DN 80 ISO PN 10 Flanged

Material of Construction

  • Filter Vessel: Stainless Steel 304L
  • Nozzles: Polypropylene
  • Gaskets: EPDM
  • Filter Media: Multi Level Graded AFM

Filtration Performance

  • Down to 1 micron

Inlet/Outlet Diameter

  • Up to 3"

Maximum Temperature

  • 60° C

Supply Voltage

  • 110/240 V, 50 Hz
