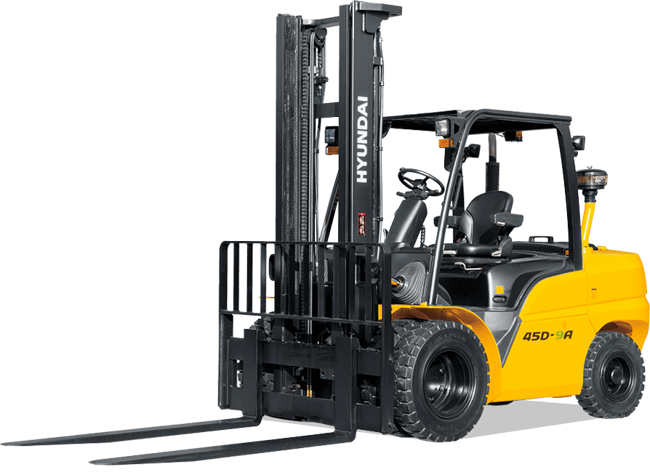

Hyundai Diesel 35, 40, 45D-9, 50DA-9
Brand: Hyundai Construction Equipment Americas, IncHyundai introduces a new line of 9-series diesel forklift trucks. The newly designed four-wheel counterbalance trucks provide operator comfort, increased productivity and easy maintenance.
Features- Maximum performance
- Spacious operator cab
- 5.6 inch LCD color monitor
- Truck inclination warning system
- Weight indicator
- Easy serviceability
- Maximum speed limit function
- Password starting system
- Auto fork leveling system (optional)
- Operator presence sensing system
- LED rear work lamp (optional) (OPSS) for safe operation
Specifications
Manufacturer
- Hyundai
Manufacturer’s Model Designation
- 35D-9
- 40D-9
- 45D-9
- 50DA-9
Drive
- Diesel
Type of Operation
- Seated
Load Capacity / Rated Load
- 35D-9: 7,700
- 40D-9: 8,800
- 45D-9: 9,900
- 50DA-9: 11,000
Load Center Distance
- 24
Load Distance, Center of Drive axle to Fork
- 22
Wheelbase
- 79
Service Weight
- 35D-9: 13,082
- 40D-9: 14,295
- 45D-9: 15,212
- 50DA-9: 16,131
Axle Loading, Loaded Front/Rear (lb)
- 35D-9: 17,948 / 2,851
- 40D-9: 20,078 / 3,034
- 45D-9: 21,806 / 3,327
- 50DA-9: 23,541 / 3,611
Axle Loading, Unloaded Front/Rear (lb)
- 35D-9: 5,756 / 7,326
- 40D-9: 6,144 / 8,148
- 45D-9: 6,131 / 9,081
- 50DA-9: 6,124 / 10,005
Tires
- Pneumatic
Engine Manufacturer
- CUMMINS/QSF3.8
Travel Speed
- 15.9 mph to 16.5 mph
Power hp/rpm
- 101 hp / 2,200 rpm
Length to Face Forks
- 127 in to 130 in
Overhead Guard Height
- 87 in
Overall Width
- 54 in to 69 in
Turning Radius
- 92.2 in to 98
