Multi-Bar Cropper

Brand: Pinnacle Drilling Products LP
Add Product to My Catalog

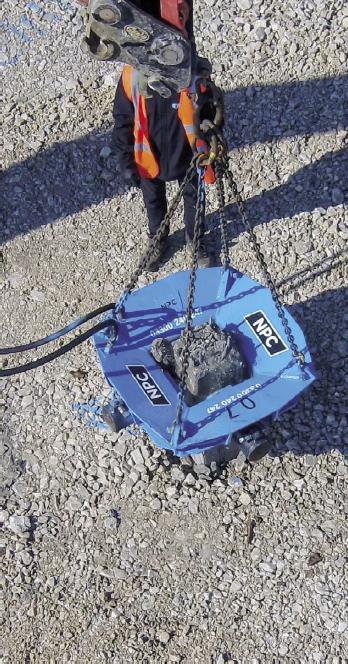

An old favorite the Multi-Bar cropper as its name suggests is used for precast piles (PCC ) with four or more reinforcement bars (rebar).

At only 450kgs the cropper can be mounted to a minimum 6T Excavator.

The cropper is designed to remove sections of concrete at approximate 250mm per crop, the 4 powerful rams and blades missing the rebar and penetrating into the centre of the pile to leave a minimum of trimming.

Not recommended for pile caps or tight sites – requires a 600 bucket dig all around pile edge.

1 - 2 of 2 Part Numbers
MB 12-14
MB 12-14
PINNACLE DRILLING Multi-Bar Cropper

Pile Size: 300-350 mm
Weight: 550 Kg
Length: 1300 mm
Width: 1300 mm
Height: 310 mm
Excavator min size: 6 tonne
Max operating pressure: 275 bar
Flow rate: 90-220 L/min
MB 8-10-12
MB 8-10-12
PINNACLE DRILLING Multi-Bar Cropper

Pile Size: 200-300 mm
Weight: 450 Kg
Length: 1230 mm
Width: 1230 mm
Height: 310 mm
Excavator min size: 6 tonne
Max operating pressure: 275 bar
Flow rate: 90-220 L/min
