IME Indicator, 8080PR Model

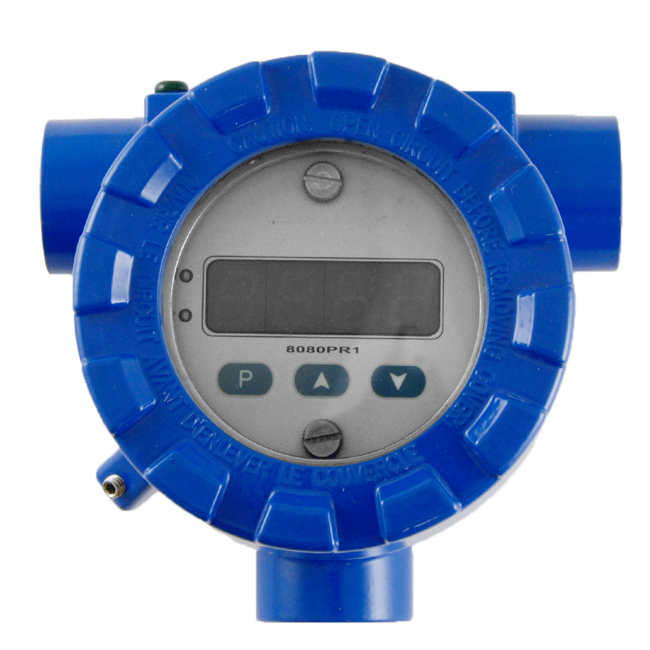

8080PR Model Dual Relay Temperature Indicator

Brand: International Metal Engineering (IME)
Add Product to My Catalog

IME Indicator, 8080PR Model IME Indicator, 8080PR Model IME Indicator, 8080PR Model IME Indicator, 8080PR Model
  • Dual Alarm
  • 4-Digit LED Indicator
  • 2 Conduit Connections
    • 3/4" NPT
    • 1/2" NPT
    • M20 x 1.5P
  • 1 Instrument Connection
    • M16 x 2P
    • 1/2" NPT
  • Input: RTD
  • Output: 4-20mA Retransmission
  • Temperature Range: -50°C to +75°C (-58°F to +167°F)
  • Materials of Construction
    • Enclosure: Epoxy Coated Aluminum or 316 Stainless Steel
    • O-Rings: Buna-N
    • Mounting Bracket: 316 Stainless Steel
  • Environmental Rating: NEMA 4X, IP68
  • Approvals: FM, CSA, ATEX, IECEx Explosion Proof

1 - 12 of 246 Part Numbers
8080-MK
8080-MK
IME Model 8080-MK, Loop Powered Indicator (Circuit Board Only)
8080FR-A-04-E1-00-0
8080FR-A-04-E1-00-0
IME Model 8080 Flow Indicator Totalizer, Aluminium, 1/2" NPT, Intrinsic Safe, None
8080FR-A-04-E1-NR-02
8080FR-A-04-E1-NR-02
IME Model 8080 Flow Indicator Totalizer, Aluminium, 1/2" NPT, Intrinsic Safe, 175NR Mounting Bracket
8080KN-A-00-E-05-NT-07
8080KN-A-00-E-05-NT-07
IME Model 8080 Battery Powered Digital Temp Indicator, 1/2" NPT
  • IME Model 8080 Battery Powered Digital Temp Indicator, 1/2" NPT
8080KN-A-01-E1-RC-01
8080KN-A-01-E1-RC-01
IME Model 8080 Battery Powered Digital Temp Indicator, M16 x 2P & 3/4" NPT, Aluminium, CSA, Bracket
  • 8080KN: Battery Powered Digital Temperature Indicator
  • A: Die cast Aluminum, Epoxy Coated Housing
  • 01: M16 x 2P (Mounting) & ¾" NPT Conduit Size
  • E1: FM / CSA / ATEX / IECEx Explosion Proof Certified, NEMA 4X, IP68, T6
  • RC: Model 175RC Mounting Bracket
  • 01: Model 17508, 1 Set (For Model 175RC)
8080KN-A-04-E1-00-0
8080KN-A-04-E1-00-0
IME Model 8080 Battery Powered Digital Temp Indicator, 1/2" & 3/4" NPT, Aluminium, CSA
  • Power Source: Battery Powered
  • Indicator: 4-Digit LED
  • Conduit Connections: 3/4" NPT x2
  • Instrument Connection: 1/2" NPT
  • Operating Temperature: -20°C to +60°C (-4°F to +140°F)
  • Materials of Construction:
    • Enclosure: Epoxy Coated Aluminum
    • O-Rings: Buna-N (Nitrile)

  • Environmental Rating: NEMA 4X, T6
  • FM/CSA Explosion Proof
8080KN-T-04-E1-00-0
8080KN-T-04-E1-00-0
IME Model 8080 Battery Powered Digital Temp Indicator, 1/2" & 3/4" NPT, SST, CSA
IME Model 8080 Battery Powered Digital Temp Indicator, 1/2" & 3/4" NPT, SST, CSA

402 US list
8080PP-A-01-E1-00-0
8080PP-A-01-E1-00-0
IME Model 8080 Loop-Powered Process Indicator, Aluminium, M16 x 2P, Intrinsically Safe, None
8080PP-A-01-E1-PM-0
8080PP-A-01-E1-PM-0
IME Model 8080 Loop-Powered Process Indicator, Aluminium, M16 x 2P, Intrinsically Safe, 175PM Bracket
8080PP-A-04-E1-00-0
8080PP-A-04-E1-00-0
IME Model 8080 Loop-Powered Process Indicator, Aluminium, 1/2" NPT, Intrinsically Safe, None
8080PP-A-04-E1-PM-0
8080PP-A-04-E1-PM-0
IME Model 8080 Loop-Powered Process Indicator, Aluminium, 1/2" NPT, Intrinsically Safe, 175PM Bracket
8080PP-T-01-E1-00-0
8080PP-T-01-E1-00-0
IME Model 8080 Loop-Powered Process Indicator, 316 SST, M16 x 2P, Intrinsically Safe, None
1 - 12 of 246 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 0.5° C (± 0.9° F)

Alarm

  • 2 Sets SPDT, Rated 10 A at 250 Vac, 50/60 Hz
  • None

Approvals & Certifications

  • ATEX
  • CSA
  • FM
  • IEC Ex

Conduit Connection

  • 1/2" NPT
  • 3/4" NPT
  • M20 x 1.5

Digital Stability

  • 0.1 % of Calibrated Range ± 1-Digit over 6 Months

Display

  • 4-Digit LED

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum, Epoxy Coated

Environmental Protection

  • IP66
  • NEMA 4X / IP66

Input

  • 3-Wire RTD

Instrument Connection

  • 1/2" NPT
  • M16 x 2P

Mounting

  • 2" U-Bolt Fasteners for Pipe Mounting
  • 316 Stainless Steel Mounting Kit, for Wall or 2" Pipe
  • 316 Stainless Steel Wall Mounting Bracket

Output

  • 4-20 mA (Re-transmission)

Response Time

  • Typically 20 to 75 ms

Supply Voltage

  • 18-28 Vdc

Temperature Range

  • -40° to 60° C (-40° to 140° F)
