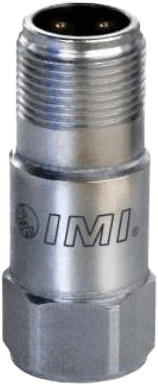

Platinum Low-Cost Industrial ICP Accelerometer
Brand: PCB PiezotronicsPlatinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration.
The 603C01 ICP® is one model in a very diverse line of 603-Series accelerometers. The 603-Series includes alternative sensitivity models, hazardous area approved models, dual output models and models with an integral cable.
Features- Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
- Frequency Range: (±3dB)30 to 600000 cpm (0.5 to 10000 Hz)
- Sensing Element: Ceramic
- Measurement Range: ±50 g (±490 m/s²)
- Weight: 1.8 oz (51 gm)
Specifications
Brand
Sensitivity (±10 %)
- 100 mV/g
- 10.2 mV/(m/s²)
Measurement Range
- ± 50 g
- ± 490 m/s²
Frequency Range (±3 dB)
- 30 to 600000 cpm
- 0.5 to 10000 Hz
Resonant Frequency
- 1500 kcpm
- 25 kHz
Broadband Resolution
- 350 µg
- 3434 µm/sec2
Non-Linearity
- ± 1 %
Transverse Sensitivity
- ≤ 7 %
Overload Limit (Shock)
- 5000 g pk
- 49050 m/s² pk
Temperature Range
- -65° to +250° F
- -54° to +121° C
Enclosure Rating
- IP68
Settling Time (within 1% of bias)
- ≤ 2.0 sec
Discharge Time Constant
- ≥ 0.3 sec
Excitation Voltage
- 18 to 28 Vdc
Constant Current Excitation
- 2 to 20 mA
Output Impedance
- < 150 Ohm
Output Bias Voltage
- 8 to 12 Vdc
Broadband Electrical Noise (1 to 10000 Hz)
- 5 µV
Spectral Noise (10 Hz)
- 8 µg/√Hz
- 78.5 (µm/sec2)/√Hz
Spectral Noise (100 Hz)
- 5 µg/√Hz
- 49.1 (µm/sec2)/√Hz
Spectral Noise (1 kHz)
- 4 µg/√Hz
- 39.2 (µm/sec2)/√Hz
Electrical Isolation (Case)
- > 100000000 Ohm
Size - Hex
- 11/16 in
- 18 mm
Size - Height
- 1.65 in
- 42.2 mm
Weight
- 1.8 oz.
- 51 gm
Mounting Thread
- 1/4-28 Female
Mounting Torque
- 2 to 5 ft-lb
- 2.7 to 6.8 Nm
Sensing Element
- Ceramic
Sensing Geometry
- Shear
Housing Material
- Stainless Steel
Sealing
- Welded Hermetic
Electrical Connector
- 2-Pin MIL-C-5015
Electrical Connection Position
- Top
