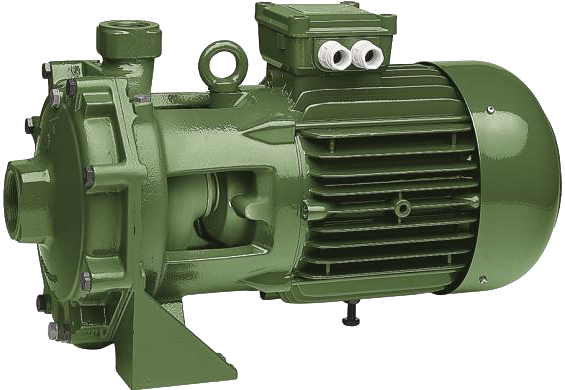

K Twin Impeller Centrifugal Pumps

Brand: Dab Pumps S.p.A
Add Product to My Catalog

DAB K Twin-impeller centrifugal pump designed for the boosting pressure in water systems.

Suitable for sprinkler systems, irrigation and other general water supply uses.
Features
  • Pump body and motor support in cast iron
  • Technopolymer or cast iron impeller, as per the TECHNICAL DATA table
  • Carbon/ceramic mechanical seal

1 - 4 of 4 Part Numbers
K 35/100 M
K 35/100 M
K Twin Impeller Centrifugal Pumps
  • Voltage: 1 x 220 - 230 V, 60 Hz
  • Rated Output: 1.56 kW
  • Nominal Rated Output: 1.1 kW / 1.5 HP
  • Current: 7 - 6.6 A
  • Capacitor: 31.5 µF / 450 Vc
K 35/40 M
K 35/40 M
K Twin Impeller Centrifugal Pumps
  • Voltage: 1 x 115/230 V, 60 Hz
  • Rated Output: 1.3 kW
  • Nominal Rated Output: 0.75 kW / 1 HP
  • Current: 11.5 - 5.5 A
  • Capacitor: 80 µF / 450 Vc
K 40/100 M
K 40/100 M
K Twin Impeller Centrifugal Pumps
  • Voltage: 1 x 220 - 230 V, 60 Hz
  • Rated Output: 2 kW
  • Nominal Rated Output: 1.85 kW / 2.5 HP
  • Current: 9.6 - 9.2 A
  • Capacitor: 40 µF / 450 Vc
K 45/50 M
K 45/50 M
K Twin Impeller Centrifugal Pumps
  • Voltage: 1 x 220 - 230 V, 60 Hz
  • Rated Output: 2.02 kW
  • Nominal Rated Output: 1.1 kW / 1.5 HP
  • Current: 9.1 - 8.7 A
  • Capacitor: 31.5 µF / 450 Vc
1 - 4 of 4 Part Numbers

Specifications

Brand

Operating Range

  • From 5.3 to 132 gpm (1.2 to 30 m³/h) with a head up to 318 ft / 88 psi (97 m)

Liquid Quality Requirements

  • Clean, Free from Solids or Abrasive Substances, Non-viscous, Non-Aggressive, Non-crystallized, Chemically Neutral, Close to the Characteristics of Water

Liquid Temperature Range

  • K 35/40, K 45/50, K 35/100, K 40/100, K 55/100: From 14°F to 122°F (-10°C to +50°C)

Maximum Ambient Temperature

  • 104°F

Maximum Operating Pressure

  • K 35/40, K 35/100, K 40/100: 87 psi (6 Bar / 600 kPa)
  • K 45/50: 116 psi (800 kPa)

Installation

  • Fixed or Portable in a Horizontal Position

Special Version

  • On request Other Voltages and/or Frequencies

Insulation Class

  • F
