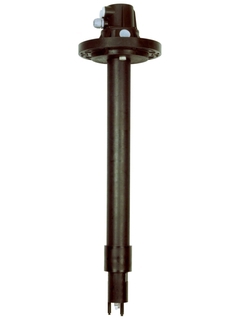

Immersion assembly Dipfit CPA111
Brand: Endress+Hauser Group Services AG
The Dipfit CPA111 immersion assembly is designed for applications in open and closed tanks. It offers space for three sensors that can be easily mounted and removed via the bayonet lock. The adjustable flange gives you the required flexibility for universal use. Dipfit is the time- and cost-efficient solution for standard water and wastewater treatment.Features
- Simple installation and removal of electrode holder due to bayonet lock
- Flexible immersion depth thanks to adjustable flange
- Reduces installation effort by providing 3 mounting positions for 120 mm sensors or an optional cleaning unit
- Made of environmentally compatible polypropylene material
Specifications
Measuring principle
- Potentiometric
Application
- Water, waste water, process
Installation
- Immersion assembly
Characteristic
- For open and closed tanks and channels
Design
- Bayonet technology, 3 electrode installation locations,
- 120 mm electrodes, variable holder length, integrated spray cleaning CPR31, external spray cleaning CPR30, process connection with fix or adjustable flange
Material
- Sensor holder: PP-GF 20
- Immersion tube: PP
Dimension
- Length: 500 to 3000 mm (19.7 to 118 inch), special lengths on request
Process temperature
- Max. 80 °C (176 °F)
Process pressure
- Max. 4 bar at 20°C
- (Max. 58 psi at 68°F)
Connection
- Suspended assembly, lap joint flange DN100
- Pressurized flange DN100/PN4, adjustable flange DN100
- Wastewater
- Water Treatment
