Digital ORP sensor Memosens CPF82E

Digital ORP sensor Memosens CPF82E

Brand: Endress+Hauser Group Services AG
Add Product to My Catalog

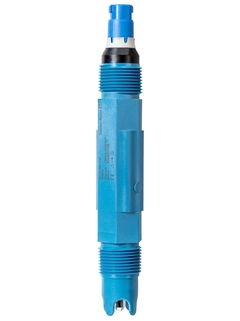

Digital ORP sensor Memosens CPF82E CPF82E-ORP-sensor-angled.png CPF82E-digital-ORP-sensor.png
Memosens CPF82E is the digital, robust solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE junction guarantees low maintenance while its integrated assembly offers easy and compact installation. Thanks to Memosens 2.0 digital technology, CPF82E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.Features
  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
  • Long time stable: Double junction provides better protection against electrode poisoning ions such as S2-or CN-.
  • Robust polymer housing protects against mechanical damage.
  • The sensor is suitable for flow and immersion installation
  • Non-contact, inductive signal transmission maximizes process safety.
  • Minimum process downtime and extended sensor lifetime reduce operating costs.

Specifications

Brand

Measuring principle

  • Sensor ORP / Redox

Application

  • Flotation, leaching, neutralization, outlet monitoring

Characteristic

  • Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4"

Measuring range

  • -1500mV to +1500mV

Design

  • Compact electrode in PPS housing with NPT3/4" process connection

Material

  • Housing: PPS
  • ORP electrode: platinum ring
  • Double chamber reference system: KNO3 and KCl/AgCl

Dimension

  • Diameter: 22 mm (0.87 inch)
  • Length: 150 mm (5.91 inch)

Process temperature

  • 0 to 80 °C (32 to 170 °F)

Process pressure

  • 1 to 10 bar abs at 80 °C
  • (15 to 145 psi abs at 176 °F)

Temperature sensor

  • NTC

Ex certification

  • (optional) FM IS NI Cl. I Div.1&2, Groups A-D

Connection

  • Process connection: NPT 3/4"
  • Memosens plug

Ingress protection

  • IP 68

  • Flotation, Leaching, Neutralization, Outlet Monitoring

Documentation

Data Sheets

Certifications

Operation Instruction

Safety Instruction
