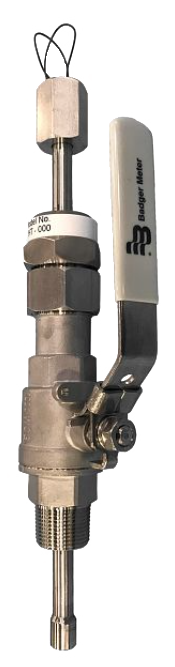

THT Sensor
Brand: Badger MeterThe Badger Meter Model THT Temperature Sensor provides accurate remote temperature sensing for use with Badger Meter Series 340 BN/MB BTU Transmitter, FC-5000 BTU Monitor and other building automation applications.
Specifications
Brand
Sensing Element
- 2-wire Thermistor (Thermal Resistor)
Accuracy
- ± 0.36° F (0.2° C) from 32…158° F (0…70° C)
Temperature Range
- -17 to 121° C (0 to 250° C)
Stability
- 0.024° F (0.13° C) over 5 years
Head Dissipation
- 2 mW/°C typical before plotting
Wetted Materials
- 316 Stainless Steel, Viton O-Rings
Service Connection Size
- 1" NPT
Pressure Rating
- 1000 psi (69 bar)
Insertion Force Required
- Approximately 20 % of line pressure
Mounting
- 1" tap, Tapping Saddle or Weldment
Electrical Connection
- 6" 24 AWG flying leads with 1/2" Conduit Thread
