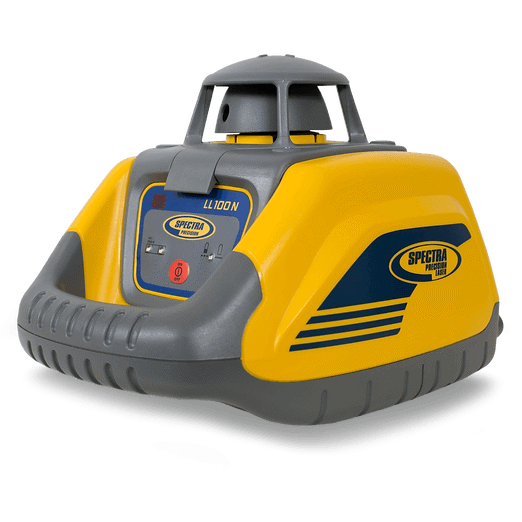

LL100N Laser Level
Brand: Spectra PrecisionOur entry level beats others top levels.
The LL100N Laser Level is a complete one-man leveling crew in a case.
A complete system is contained in a single hard-shelled, portable carrying case - the laser, receiver, clamp, tripod, and grade rod – for easy transportation, storage, and use.
Features- Automatic Self-leveling
- Accuracy 1/8 Inch at 100 ft / 3mm at 30 m
- Working Range of 1,150 ft / 350 m Diameter
- Simple One-button Operation for Quick Start Up
- Height of Instrument Alert - Unit Stops Rotating when Jarred to Avoid Erroneous Readings
- Single Axis Manual Slope Mode - with RC601 Remote Control
- Kit Available and Fits in One Case with Tripod and Grade Rod
- Extremely Durable and Portable
- 2 Year Warranty
Specifications
Brand
Laser Source
- 650 nm visible, Class 2
Laser Accuracy
- ± 1/8 in at 100 ft
- ± 3 mm at 30 m
Compensation Method
- Electronic self-leveling / ± 5°
Operating Range
- 1,150 ft / 350 m diameter with receiver HR320
Out of Level Warning
- Rotor stops
- Laser shuts off
- Red out-of-level LED flashes
Rotation Speed
- 600 RPM
Operating Temperature
- 23° to 113° F
- -5° to 45° C
Storage Temperature
- -4° to 158° F
- -20° to 70° C
Battery Life
- 80 Hours Akaline
Size
- 8.5L x 6.7W x 6.0H in
- 21.6L x 17.1W x 15.2H cm
Water Resistant
- IP Rating IP64
Weight
- 1.5 kg
- 3.3 lb
Low Voltage Indicator
- LCD battery indicator
Warranty
- 2 Years
