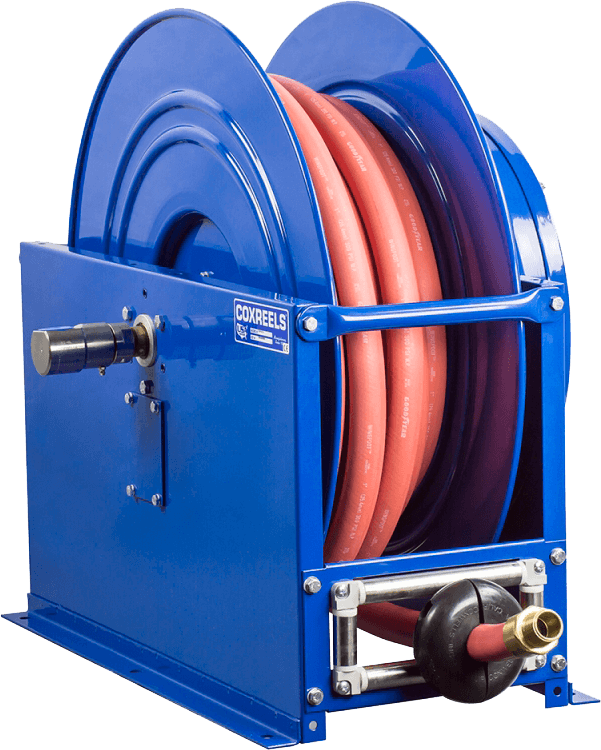

Spring Driven Reels | SP Series
Brand: COXREELS®COXREELS® SP Series "Single Product Delivery" spring driven hose reels are built to handle large hose diameters.
Used in applications demanding large volume delivery in low and medium pressures such as fuel and water.
The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.
Swivel
- Machined from solid brass 90º full - flow NPT swivel inlets
- Electro - less nickel plated steel swivel on 1" models
- Straight in-line aluminum swivel on 1 -1/2" models
- Swivel Seals: NITRILE (AFLAS on 1" models)
Design & Structure
- Reel features a sturdy box-style frame design
- Reel adjusts to wall, floor, vehicle & overhead positions
- Heavy gauge 1/4" steel base for maximum strength
- Reinforced steel frame provides maximum strength & stability
- Long lasting self-lubricated flange bearings for smooth rotation
- Heavy duty 1" stainless steel pinch-proof rollers
Retract
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel pawl spring
- Cast iron lock ring with non-sparking bronze pawl
- Multi-position lock ratchet mechanism secures hose at desired length
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2 - year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- Swivel - Electro - less nickel plated steel 90º full-flow NPT swivel on 1" models for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box - Style Design - Sturdy box-style, reinforced steel frame design provides maximum strength and stability.
- Steel Rollers - Heavy duty 1" stainless steel pinch-proof rollers.
- Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.
Specifications
Brand
Inside Diameter
- 1/2"
- 3/4"
- 1"
- 1-1/4"
- 1-1/2"
Hose Length
- 25 ft
- 50 ft
- 75'
- 100 ft
- 35 ft
PSI
- Low Pressure - Under 1000
- Medium Pressure - 1000 to 4000
Optional
- Hose
