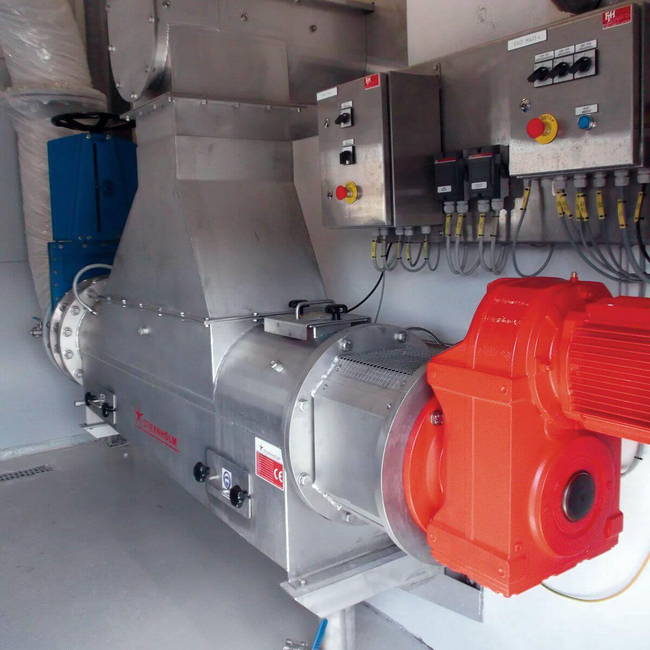

Screening Washing Press
Brand: Stjernholm US IncThe screening washing press from Stjernholm is utilized in many purification plants. Everywhere, it achieves very good results, e.g. up to 45% dry matters and a screen material production of up to 60%.
The facility ensures efficient and optimal transport and washing of the screening for organic material, at the same time increasing the dry matter content in the washed screen material.
System with a good economy
A high level of effectiveness means less need for disposal and transport, thereby minimizing handling costs.
The leached out and pressed screen material is directly discharged in disposal bags made of plastic.
A completely closed system is guaranteed, featuring a high level of hygiene with regards to screen material handling.
Specifications
Brand
Service Life
- 15-20 years
Material of Construction
- AISI 304, S35J2G3
Gear Type
- SEW Helical Gear Unit
Engine
- 230/460 V 60 Hz
Dry Matter
- Up to 45 %
Screen Material Reduction
- Up to 80 %
Drive Gear
- 4 HP, 7 HP, 10 HP
RPM
- 21
Inlet Capacity
- 265 gal (35 ft³/h)
- 530 gal (70 ft³/h)
- 800 gal (105 ft³/h)
