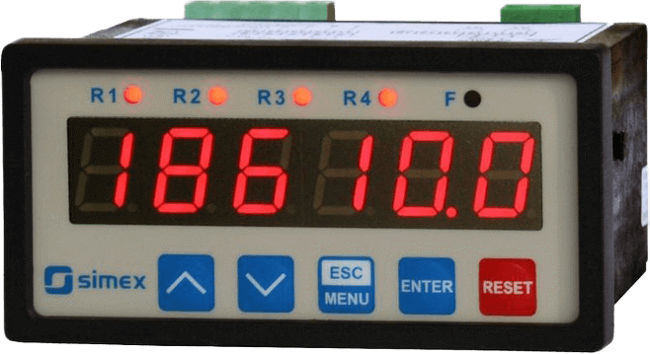

STI-94 Tachometer
Brand: SIMEX sp. z o.o.The STI-94 tachometers are designed to control rotational or linear speed of moving objects.
The device is also able to measure frequency.
As an additional advantage the device can convert the rotational / linear speed into inverse values, and to display the single revolution period or process duration.
The REL / OC control outputs can be programmed depending on the instantaneous value of rotational speed.
Additionally the counter may be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Pulse rate / Period Meter
- Rotational / Linear Speed Control
- Revolution / Movement Period Control
- 0, 2 or 4 REL / OC Outputs
- Analogue Output: Active or Passive, Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- "Over" Signalling when the Measuring Range is Exceeded
- Free Configuration Software S-Config
Specifications
Brand
Number of Inputs
- 1
Input Type
- Current - mA
Input Levels
- Low: 0-1 V, High: 10-30 V
Output Type
- Relay I=1A, U=30 Vdc/250 Vac (cosø=1)
- Open Collector: I=30 mA, U=30 Vdc, P=100 mW
- 0/4-20 mA: active current, operating range 0-24 mA max., load resistance 700 Ω max., resolution 13-bit
- 4-20 mA: passive current, isolated, operating range 2,8-24 mA max., load resistance 600 Ω @ 24 Vdc, resolution 13-bit
- 0/1-5 V, 0/2-10 V: active voltage, operating range 0-11 V max., load resistance min. 2000 Ω, resolution 13-bit
Measurement Method
- Electrical
- Pulse
Power Supply
- 16-35 Vac, 19-50 Vdc
- 85-260 Vac/dc
- 11,4...15 Vac/dc
Display
- LED, 6 x 13 mm, Red
- LED, 6 x 13 mm, Green
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200 to 115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0° to +50° C
- -20° to +50° C
Protection Class
- IP 20: Case and Connection Clips
- IP 65: Front
- Optional Integrated Frame for Panel Cut-out Sealing
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 96 x 48 x 100 mm
