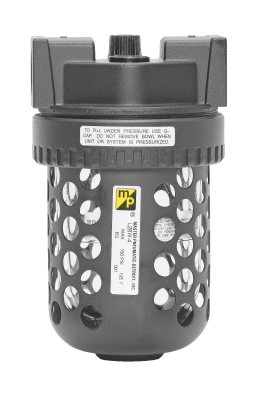

L28W Full-Size Vanguard Modular Wick-Feed Lubricator 1/4", 3/8", 1/2" and 3/4"
Brand: Master Pneumatic
Features
- Modular or inline mounting.
- High-strength polycarbonate plastic bowl with steel shatterguard. Optional zinc bowl.
- Wick-feed design.
- External adjusting knob.
- NPTF port threads; optional BSPP threads.
Specifications
Brand
Ambient / Media Temperature
- Plastic Bowl: 40° to 125° F (4° to 52° C)
- Metal Bowl: 40° to 175° F (4° to 79° C)
Enclosure / Body Material
- Body: Zinc
Material of Construction
- Adjusting Knob: Acetal
- Bowl Ring: Aluminum
- Bowl: Polycarbonate Plastic, Zinc Optional
Media
- Compressed Air
Inlet Pressure
- Plastic Bowl: 150 psig (10 bar) Max.
- Metal Bowl: 200 psig (14 bar) Max.
Seal Material
- Nitrile
