Model PRDC2 Proximity Sensor
Brand: Red Lion Controls

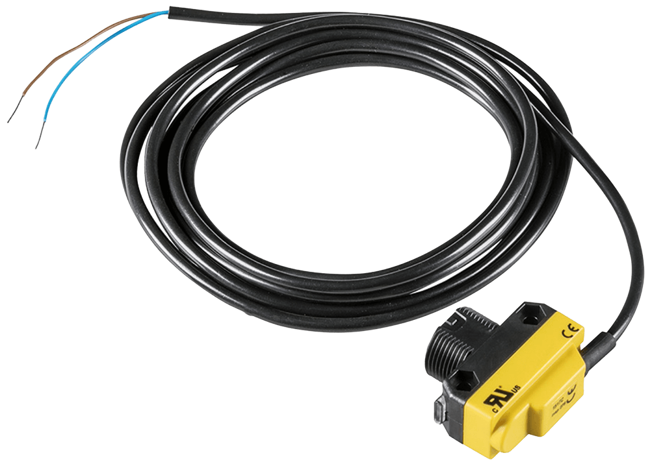

The Model PRDC2 is a miniature, DC powered, proximity (Diffuse) photo-electric sensor with a 18" maximum detecting distance.
This sensor requires no special reflectors or reflective tapes and the limited sensing range reduces detection of background reflections.
It is ideally suited for detection of transparent or translucent objects, parts ejected from presses, and rotating targets such as pulley spokes.
A modulated “infrared” LED light beam provides immunity to ambient light.
In operation, the modulated light beam is reflected by the detected object.
This reflected light beam is sensed by a photo-transistor, which in turn energizes the output.
Actual sensing range is determined by the surface area and the amount of reflectivity of the object.
Features- Easily fits most any mounting situations
- Exceptional optical performance
- 10-30 Vdc operation with reverse polarity protection
- Display operating status LEDs are visible from 360°
- Rugged sealed housing, protected circuitry
- Less than 1 Millisecond output response for excellent sensing repeatability
1 - 6 of 6 Part Numbers
MBMAB200
- Product - Right-Angle Mounting Bracket
MBMSB200
- Product - Side-Mount Mounting Bracket
PRDC2000
- Product - Proximity (Diffuse) DC Photo-Electric Sensor
RRTAPE00
- Product - 50 mm x 2.5 m Reflective Tape
RT100000
- Product - 1.5'' Reflective Target
RT200000
- Product - 3'' Reflective Target
1 - 6 of 6 Part Numbers
Specifications
Brand
Approvals & Certifications
- CE
- IEC
- UL (C,US) File E71083
Cable Length
- 6.5 ft (2 m)
Electrical Connectors
- 6.5 ft (2 m) 4-wire PVC Cable
Enclosure, Body Material
- ABS
Environmental Protection
- IP67
- NEMA 6
Humidity
- 90 % RH at 50° C (122° F), Non-Condensing
Indication
- LED
Mounting
- Right-Angle & Side-Mount Mounting Bracket
Operating Temperature
- -20° to 70° C (-4° to 158° F)
Output
- Off-State Leakage Current: < 50 μA at 30 Vdc
- On-State Saturation Voltage: < 1 V at 10 mA
- On-State Saturation Voltage: < 1.5 V at 100 mA
- Rating: 100 mA - Max.
Response Time
- Difuse & Retroreflective Mode: 600 µs (ON/OFF)
- Opposed Mode: 375 µs (OFF)
- Opposed Mode: 750 µs (ON)
Supply Voltage
- 10-30 Vdc (10 %, Max.
Time Constant
- Diffuse & Retroreflective Mode: 150 µs
- Opposed Mode: 100 µs
