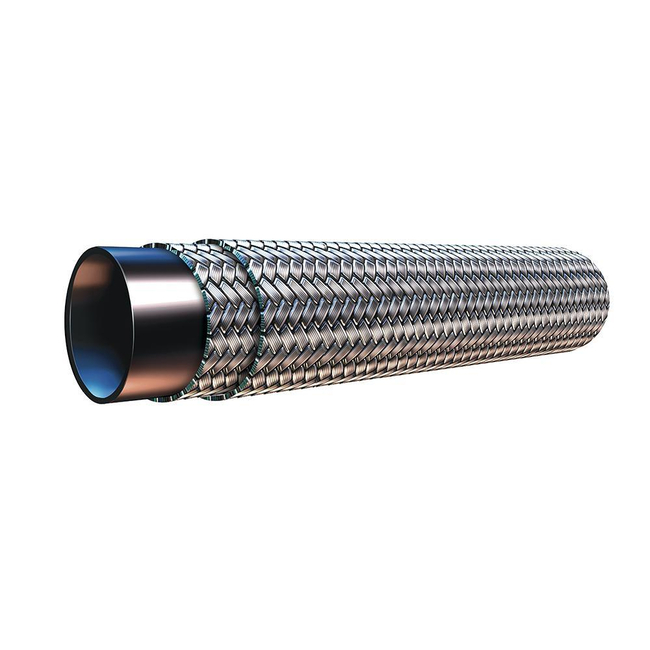

PTFE High Pressure Hydraulic Hose Assemblies
Brand: Parker HannifinParker's PTFE High Pressure Hydraulic Hose Assemblies have excellent chemical compatibility, resist moisture, and handle working pressures as high as 5,500 psi while maintaining peak flow rates.
The PTFE braided hose assemblies have a static dissipating liner to provide a path of continuity to the end fittings for applications where flow-induced electrostatic charges could occur and potentially damage the hose assembly and surrounding environment.
The 944B and 955B PTFE hoses are manufactured with a heavy wall of PTFE that has excellent compatibility with a variety of media, including corrosive chemicals such as acids and newer hydraulic fluids.
They also meet qualifications and expectations that are often required for successful operating in general hydraulics, compressed air/gases and chemical transfer applications.
The 304 stainless steel wire braid minimizes volumetric expansion in hydraulic service and the assemblies feature low friction, which minimizes pressure drops and deposits as well.
Features- High temperature hydraulic hose
- Excellent chemical compatibility for reliable transfer of chemicals
- Resists moisture for added protection
- Low friction minimizes pressure drops and deposits
- PTFE hoses are braided which allows for better flexibility and a tighter bend radius in the finished hose while maintaining high continuous working pressures
- Reinforcement with 304 Stainless Steel wire braid minimizes volumetric expansion in hydraulic service applications
Specifications
Brand
Applications
- Chemical Transfer, Fluid Handling, Chemical Transfer, Hydraulic, Manufacturing/Industrial, Transportation
Color
- Silver
Compatible Fittings
- 94, 95 - Dependent on Style
Connection 1 Style
- Various
Connection 2 Style
- Various
Dash Number
- -4 to -16
Fitting Material
- Stainless Steel
Fitting Type
- Crimp
Hose I.D. (inch)
- 15 / 64, 5/16", 7/16, 13/32, 1/2", 5/8", 29 / 32
Hose I.D. (mm)
- 6, 8, 9, 10, 11, 13, 16, 19, 23
Hose I.D. (Size)
- -4, -6, -8, -10, -12, -16
Hose O.D. (inch)
- 0.39 to 1.36
Hose O.D. (mm)
- 10 - 34
Hose Style
- Static Dissipative
Hose Type
- PTFE Hose, High Pressure Smoothbore
Industry Standards
- SAE 100R7 (943B), SAE 100R17 (943B)
Length (feet)
- 1 - 35
Length (m)
- 0.305 to 10
Maximum Hose O.D. (mm)
- 10 - 34
Maximum Working Pressure (bar)
- 207 - 379
Maximum Working Pressure (Mpa)
- 20.7 - 37.9
Maximum Working Pressure (psi)
- 3,000 - 5,500
Maximum Working Temperature (°C)
- 204° C
Maximum Working Temperature (°F)
- 400° F
Media
- Various
Minimum Bend Radius (inch)
- 1-1/2" - 9-1/2"
Minimum Bend Radius (mm)
- 38 - 245
Minimum Working Temperature (°C)
- -54° C
Minimum Working Temperature (°F)
- -65° F
Style
- Static-Dissipative
Weight (kg/each)
- Varies
Weight (kg/m)
- 0.16 to 1.93
Weight (Lbs/each)
- Varies
Weight (Lbs/Ft)
- 0.11 to 1.30
- High Temperature Hydraulic Applications
- Chemical Transfer
- Compressed Air/Gases
- Ground Support
