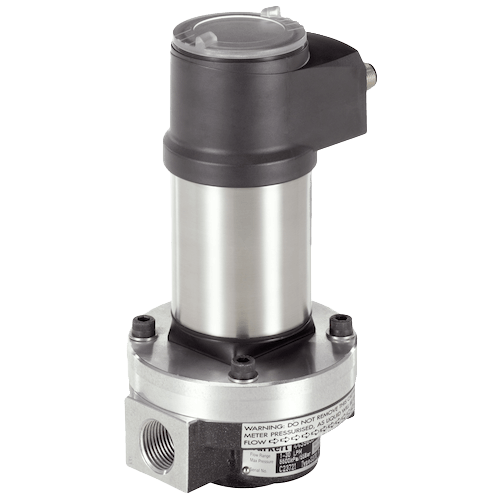

8076 Positive Displacement Flowmeter
Brand: Burkert Fluid Control SystemsThis positive displacement flowmeter with display Type 8076 is designed for use in highly viscous fluid like glue, honey. It is made up of a compact sensor fitting (S070) and an enclosure with cover, containing the electronic module.
A removable display completes the flowmeter. This ensemble (SE36) is quickly and easily connected to the sensor fitting (S070) by a Quarter-Turn.
The flowmeter can operate without the display, but it will be required for configuring the flowmeter (i.e. set parameters, restore default parameters, configure information to be displayed, programme access code, adjust 4-20 mA output(s) and also for visualizing continuously the measured and processed data.
Features- Configurable outputs: one or two transistor output(s) and single or dual 4-20 mA current output(s)
- Removable backlit display of flow rate and/or 2 two totalized volumes
- Automatic-calibration: Teach-In, simulation of outputs signals provided without the need for real flow
1 - 12 of 12 Part Numbers

560 880
- Number of Outputs / Operating Voltage - 2-Outputs / 14-36 Vdc
- Output - 1 x Transistor + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / No UL Approval
- Display - Without Display

560 881
- Number of Outputs / Operating Voltage - 3 Outputs / 14-36 Vdc
- Output - 2 x Transistors + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / No UL Approval
- Display - Without Display

560 882
- Number of Outputs / Operating Voltage - 4 Outputs / 12-36 Vdc
- Output - 2 x Transistors + 2 x 4-20 mA (3-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male & 5-Pin M12 Female Fixed Connectors / No UL Approval
- Display - Without Display

560 883
- Number of Outputs / Operating Voltage - 2-Outputs / 14-36 Vdc
- Output - 1 x Transistor + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / UL (C,US) Recognized
- Display - Without Display

560 884
- Number of Outputs / Operating Voltage - 3 Outputs / 14-36 Vdc
- Output - 2 x Transistors + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / UL (C,US) Recognized
- Display - Without Display

560 885
- Number of Outputs / Operating Voltage - 4 Outputs / 12-36 Vdc
- Output - 2 x Transistors + 2 x 4-20 mA (3-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male & 5-Pin M12 Female Fixed Connectors / UL (C, US) Recognized
- Display - Without Display

561 880
- Number of Outputs / Operating Voltage - 2-Outputs / 14-36 Vdc
- Output - 1 x Transistor + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / No UL Approval
- Display - With Display

561 881
- Number of Outputs / Operating Voltage - 3 Outputs / 14-36 Vdc
- Output - 2 x Transistors + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / No UL Approval
- Display - With Display

561 882
- Number of Outputs / Operating Voltage - 4 Outputs / 12-36 Vdc
- Output - 2 x Transistors + 2 x 4-20 mA (3-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male & 5-Pin M12 Female Fixed Connectors / No UL Approval
- Display - With Display

561 883
- Number of Outputs / Operating Voltage - 2-Outputs / 14-36 Vdc
- Output - 1 x Transistor + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / UL (C,US) Recognized
- Display - With Display

561 884
- Number of Outputs / Operating Voltage - 3 Outputs / 14-36 Vdc
- Output - 2 x Transistors + 1 x 4-20 mA (2-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male Fixed Connector / UL (C,US) Recognized
- Display - With Display

561 885
- Number of Outputs / Operating Voltage - 4 Outputs / 12-36 Vdc
- Output - 2 x Transistors + 2 x 4-20 mA (3-Wire)
- Electrical Connection / Approval - 5-Pin M12 Male & 5-Pin M12 Female Fixed Connectors / UL (C, US) Recognized
- Display - With Display
1 - 12 of 12 Part Numbers
Specifications
Ambient Temperature Range
- Operating & Storage: 0° to 60° C (32° to 140° F)
Approvals & Certifications
- CE
- EMC: EN 61000-6-2, EN 61000-6-3
- PED 97/23/CE
- UL (C,US): UL 61010-1 + CAN/CSA C22.2 No. 61010-1
Cable Length
- 164 feet (50 metres) - Max.
Circuit Protection
- Short Circuit Protected for Transistor Outputs
Consumption
- Current (2 or 3 Outputs Flowmeter [2-Wire]): ≤ 25 mA at 14 Vdc without Transistors Load, with Current Loop
- Current (4 Outputs Flowmeter [3-Wire]): ≤ 5 mA at 12 Vdc without Transistors Load, without Current Loop
- Current: ≤ 1 A with Transistor Loads
- Power: 40 W, Max.
Cover Material
- Polycarbonate
Current
- 4-20 mA
Diameter
- Pipe: 1/2 to 4" (DN 15 to DN 100)
Display
- Grey Dot Matrix 128 x 64 with Backlighting
Electrical Connectors
- 1.5 mm², Max.
- 5-Pin M12 Female
- Shielded Cable
Electrical Protection
- Voltage Peak: Protected
Enclosure, Body Material
- 316L Stainless Steel 1.4401
- 316Ti Stainless Steel, 1.4542
- Aluminum
- PPS
Environmental Protection
- IP65
- IP67
Flange Size - 1-1/2” (DN 40)
- Unrated
Flange Size - 1” (DN 25)
- Unrated
Flange Size - 2” (DN 50)
- Unrated
Flange Size - 3” (DN 80)
- Unrated
Flange Size - 4” (DN 100)
- Unrated
Humidity
- ≤ 80 % RH, Non-Condensing
Loop Impedance
- 1 Current Output: 180 ohms at 14 Vdc, Max.
- 1,100 ohms at 36 Vdc, Max.
- 2 Current Outputs: 100 ohms at 12 Vdc, Max.
- 610 ohms at 24 Vdc, Max.
Materials of Construction
- Display, Quarter-Turn System: Polycarbonate (PC)
- Fixed Connector Mounting Plate: 316L Stainless Steel, 1.4404
- Fixed Connector: Brass Nickel-Plated
- Fixed Connector: Stainless Steel
- Navigation Key: PBT
Measuring Error
- Measurement Deviation: ± 0.5 % of Reading
Measuring Range
- Viscosity 5 MPa.s: 2 to 1,200 L/minute
Operating Voltages
- 2 or 3 Outputs Flowmeter (2-Wire): 14-36 Vdc, Filtered & Regulated
- 4 Outputs Flowmeter (3-Wire): 12-36 Vdc, Filtered & Regulated
Output
- 1 Transistor Output, 2 Transistor Outputs (NPN): 1-36 Vdc
- 2 Transistor Outputs: 0.5 A, Max.
- 4-20 mA, 2 & 3-Wire
- Transistor: 700 mA - Max.
Output Format
- Open Collector
Pressure Range
- bar: 0 to 55
- kPa: 0 to 5,500
- psi: 0 to 798
Process Temperature
- Aluminum Body: 0° to 80° C (32° to 176° F)
- Stainless Steel Body: 0° to 100° C (32° to 212° F)
Repeatability
- ≤ 0.03 % of Reading
Reverse Polarity Protection
- Yes
Screw Material
- Stainless Steel
Seat / Seal Material
- Seal: EPDM
- Seal: FEP
- Seal: FKM
- Seal: PTFE
Shaft Material
- Stainless Steel
Shock
- EN 60068-2-27
Switch Type
- 1 Transistor Output (NPN), 2 Transistor Outputs (NPN & PNP): Transistor
Vibration
- EN 60068-2-6
Viscosity
- 5 MPa ·s
- 1 Pa·s Max.
Wetted Materials
- Rotor: 316L Stainless Steel (1.4401)
- Rotor: Aluminum
- Rotor: PPS
