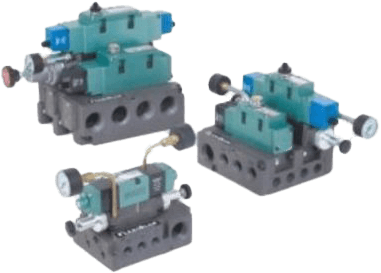

ASCO Numatics 250 Series Pneumatic Valves
Brand: ASCOThe ASCO Numatics 250 Series is a family of pneumatic valves that comply with automotive interchangeable and S.A.E. industrial standards. These high-speed, heavy-duty valves are designed for general service on all types of automation. They provide repeatable and highly reliable performance in harsh environments and are ideal for high cycle rate machine applications.
Features- Industry-leading lifecycle performance
- Modular design for easy configuration
- Energy consumption minimized via pressure regulators
- Machine cycle rate optimized via speed controls
- Manifold or base mounted for flexible installation
- Port Sizes: 3/8-inch, 1/2-inch, 3/4-inch, 1-inch NPTF
- Low-wattage 24 VDC coils
Specifications
Brand
Flow
- From 2.0 Cv to 6.0 Cv
Function
- 4-Way - 5/2, 4-Way - 5/3 - Closed Center, 4-Way - 5/3 - Open Center
Media
- Air, Inert Gas, Vacuum
Operating Environment
- Indoor, Outdoor
Pipe / Port Size
- 1/2, 3/8, 3/4, 1
Port Type
- Female NPT
Standards & Regulations
- CSA, IP65
Valve Actuation
- Solenoid - Air Pilot, Solenoid - Direct-Acting
