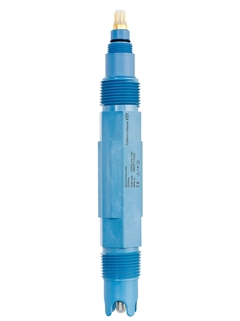

Analog ORP sensor Orbipac CPF82
Brand: Endress+Hauser Group Services AG
Orbipac CPF82 is the analog simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation.Features
- Suitable for flow and immersion installation
- Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2-or CN-ions
- Robust polymer housing protects against mechanical damage
Specifications
Measuring principle
- Sensor ORP / Redox
Application
- Water, waste water, process, galvanic
Characteristic
- Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4".
Measuring range
- -1500mV - -1500mV
Design
- Compact electrode in PPS housing with NPT3/4" process connection.
Material
- PPS / glass / PTFE, platinum
Dimension
- Length: 120´mm
- (4.68 inch)
Process temperature
- -10°C - 110°C
- (14°F - 230°F)
Process pressure
- max. 10 bar
- (145 psi)
Connection
- TOP68 connection head
Ingress protection
- IP68
- Water
- Waste Water
- Process
- Galvanic
