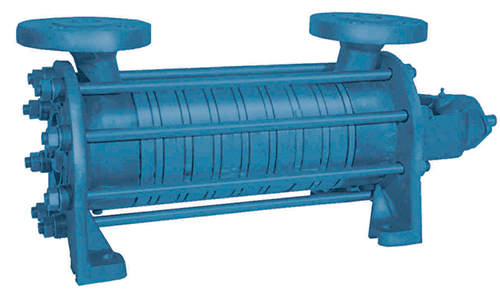

ASH Industrial Process and Chemical Pump

Brand: Flowserve SIHI
Add Product to My Catalog

ASH Industrial Process and Chemical Pumps are horizontal, self-priming, multi-stage side channel pumps with open vane wheel impellers that handle entrained gas during normal duty.

A special bearing was developed for compensation of the axial forces occurring in case of high nominal pressures.
Features
  • Developed for handling liquid gases with vapor pressures up to 80 bar.
  • Multiple applications available, especially for handling carbon dioxide, due to the high admissible nominal pressure and the optimum operation properties of the material combinations selected.
  • Successfully applied in processes and installations for the production, storage and transportation of CO2, in supply plants, measuring, regulation and decanting equipment, fire-extinguishing and inert installations, in CO2 drying and CO2 cleaning plants, for production of dry ice and for neutralizing of alkaline waste waters.

Specifications

Brand

Casing Pressure

  • Up to 100 bar

Flow Rate

  • Up to 12 m³/h

Head

  • Up to 288 m

Material

  • Stainless Steel / Bronze

Shaft Seals

  • Gland packing, mechanical Seal

Size Range

  • 3 Sizes / up to 6 Stages

Speed

  • Maximum 1800 rpm

Temperature

  • Maximum 120° C

Documentation

Brochure
