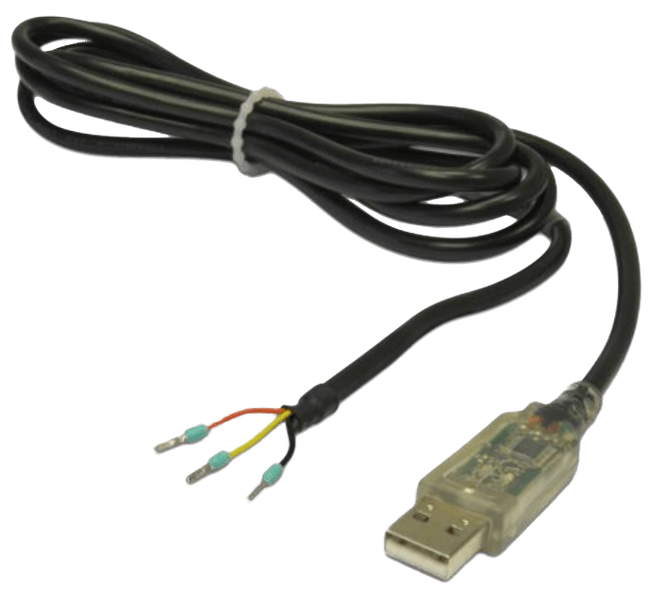

DK5232/DK5485/DK3000/DK4000 Interface Converter
Brand: Process Sensors Corporation
Interface converter RS232 to USB and RS485 to USB (with open connection wires or SUB-D connector).
- To achieve the maximum transfer speed, it is absolutely necessary to change the latency time in the advanced connection settings from 16 to 1 Millisecond
1 - 4 of 4 Part Numbers
DK3000
- Model - RS-232 to/from USB, 1.7 metres Cable, 9-Pin Sub-D Connector
DK4000
- Model - RS-485 to/from USB, 1.7 metres Cable, 9-Pin Sub-D Connector
DK5232
- Model - RS-232 to/from USB, 1.7 metres Cable, Open Connection Wires
DK5485
- Model - RS-485 to/from USB, 1.7 metres Cable, Open Connection Wires
1 - 4 of 4 Part Numbers
Specifications
Cable Length
- 5.6 feet (1.7 m)
Communication
- RS-232
- RS-485
- USB
Electrical Connectors
- D-Sub 9-Pin Connector
- RS-232 or RS-485: 12-Pin Connector
- RS-485: 17-Pin Connector
