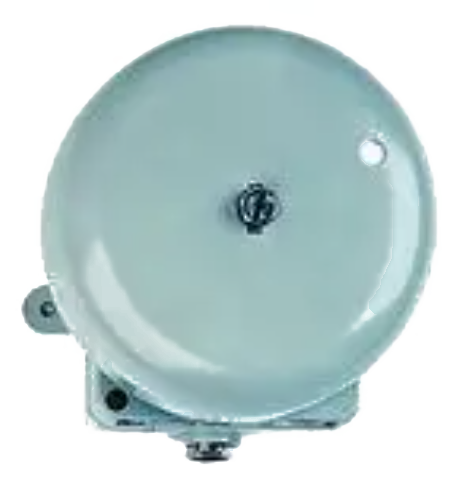

Weatherproof Signalling Bell AW.png

Weatherproof Signalling Bell AW

Brand: Funke + Huster Fernsig GmbH
Add Product to My Catalog

The signaling bells are mainly used for clear calling, reporting and warning purposes when it is wanted that a high-pitch bell sound stand out clearly against ambient noise. Different dome sizes enable optimum signaling.
Features
  • Signaling Bell with up to approx. 110 dB(A) (depends on dome size)
  • Application: Indoors and Outdoors, IP55
  • Housing: Seawater resistant Aluminum, Dome steel (powder-coated)
  • Different Dome Sizes: 105 mm, 150 mm, 250 mm as a flat dome or tower dome made by brass
  • AC and DC versions available
  • Available as: Fast stroke, single stroke or slow stroke bell

1 - 12 of 38 Part Numbers
FHF21162007
FHF21162007
Signalling Bell type AW1, 230VAC 105 mm Flat Dome
FHF21162013
FHF21162013
Signalling Bell type AW2, 24VDC 105 mm Flat Dome
FHF21162017
FHF21162017
Signalling Bell type AW2, 220VDC 105 mm Flat Dome
FHF21162102
FHF21162102
Signalling bell AW 1 12 VAC 150 FS
FHF21162103
FHF21162103
Signalling bell AW 1 24 VAC 150 FS
FHF21162104
FHF21162104
Signalling bell AW 1 42 VAC 150 FS
FHF21162105
FHF21162105
Signalling bell AW 1 60 VAC 150 FS
FHF21162106
FHF21162106
Signalling bell AW 1 110 VAC 150 FS
FHF21162107
FHF21162107
Signalling bell AW 1 230 VAC 150 FS
FHF21162111
FHF21162111
Signalling bell AW 2 6 VDC 150 FS
FHF21162112
FHF21162112
Signalling bell AW 2 12 VDC 150 FS
FHF21162113
FHF21162113
Signalling bell AW 2 24 VDC 150 FS
1 - 12 of 38 Part Numbers

Specifications

Brand

Housing

  • Corrosion-resistant aluminium die cast with surface coated pebble grey (RAL 7001)

Dome

  • Steel flat dome, pebble grey (RAL 7001) 150 mm and 250 mm (brass bell-shaped dome; steel flat dome 105 mm on request)

Protection degree

  • IP 55 (IEC 60529)

Protection class

  • I

Cable gland

  • 1x M20, for cable diameters 8-12 mm

Connection terminals

  • 2.5 mm2 fine wire
  • 4.0 mm2 single wire

Operating conditions

  • Indoors
  • Outdoors

Operating position

  • Striker pointing downwards

Operating mode

  • Continuous (for AW 1, AW 2, AW 5 and AW 6)
  • Short-time operation KB 5 min. (for AW 3 and AW 4)

Volume

  • Approx. 100 to 110 dB(A), 1 m, depending on the size of the dome

Temperature range

  • Operation -20° to +60° C
  • Storage -30° to +70° C

Approval

  • AW1/AW2 (GL) German Lloyd Certificate No. 57 073-91HH

Weight

  • 1.45 kg with flat dome 150 mm
  • 2.95 kg with flat dome 250 mm
