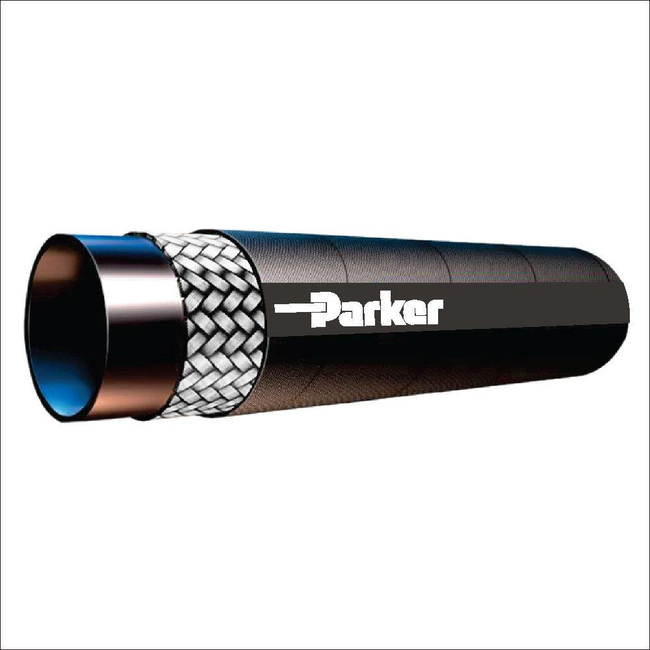

Hydraulic Hose Specification SAE 100R6. Series - SAE100R6PM
Brand: Parker HannifinSAE100R6PM hose is made as per the specification SAE type 100 R6.
The industry standard hose manufactured to strict international quality specifications in order to provide consistency of performance.
Designed with one-textile braid construction & meets global industry standards.
It offers a long service life and a wide range of fluid compatibility.
Features- Synthetic textile braid Hose reinforcement.
- Ozone resistant synthetic rubber cover.
- Flexible and can be used in intricate routing lines.
- Can be used in varied climate conditions.
Specifications
Brand
Applications
- Hydraulic
Hose I.D. (inch)
- 1/4 - 1
Hose I.D. (mm)
- 6.4 - 25.4
Hose I.D. (Size)
- -4 to -16
Hose O.D. (inch)
- 0.5 - 1.28
Hose O.D. (mm)
- 12.7 - 32.5
Industry Standards
- SAE 100 R6 / EN 854 R6
Maximum Working Pressure (bar)
- 28 - 13
Maximum Working Pressure (Mpa)
- 2.8 - 1.3
Maximum Working Pressure (psi)
- 400 - 190
Maximum Working Temperature (°C)
- 100° C
Maximum Working Temperature (°F)
- 212° F
Media
- Hydraulic Fluids
Minimum Bend Radius (inch)
- 2.5 - 9.1
Minimum Bend Radius (mm)
- 65 - 230 64 - 230
Minimum Working Temperature (°C)
- -40° C
Minimum Working Temperature (°F)
- -40° F
Temperature Range (°C)
- -40° to + 100° C
Weight (kg/m)
- 0.13 to 0.46
Weight (Lbs/Ft)
- 0.09 - 0.31
- Hydraulic Low Pressure.
- Return & Drain Oil Lines.
