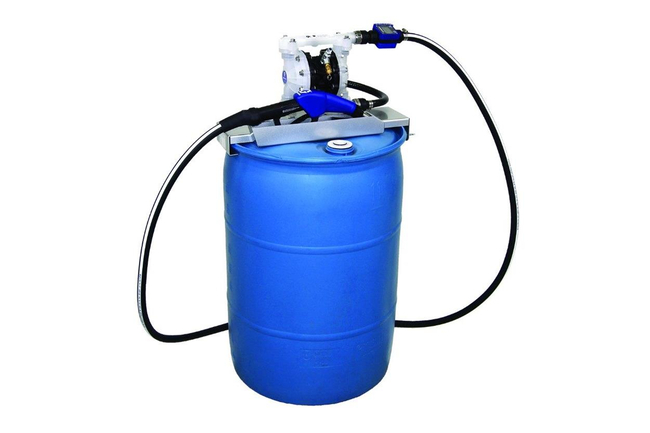

Graco SD Blue DEF Pumps and Package

SD Blue DEF Pumps & Packages

Brand: Graco, Inc
Add Product to My Catalog

Graco SD Blue DEF Pumps and Package Graco SD Blue DEF Pumps and Package Graco SD Blue DEF Pumps and Package Graco SD Blue DEF Pumps and Package Graco SD Blue DEF Pumps and Package Graco SD Blue DEF Pumps and Package
Efficient, money-saving pneumatic operation Versatility – The Husky 515 pump delivers up to 15 gpm and works on as little as 30psi Increase productivity – Powerful design has superior suction and lift for deep tanks, totes, and longer lines.

Recommended for applications with runs up to 200ft. Premium offering for high-end applications – Deluxe packages feature premium oil resistant hoses with crimped stainless steel fittings – eliminates leaking at joints and prevents crystallization
Features
  • Choose from deluxe or standard packages to meet your price point and application needs.
  • Deluxe packages feature premium hoses with stainless steel fittings, in-box air controls; SDI15 DEF Meter, SD DEF Nozzle, and DEF Colder dispense coupler kit.
  • AODD pumps are loaded with features to help you get the job done right, every time, and are built to save you money.
  • Simple bolt together assembly with no special tools.
  • Rugged construction resists corrosion for reliable performance and long life.
  • Easy-to-service air valve and ball checks.
  • Reliable air valve for years of dependable performance.
  • Maximum flow rate of 15 gpm.

Specifications

Brand

Accuracy with Water & 1 Gallon Dispensed. May Require Calibration, Out-Of-Box Accuracy Is ± 5%)

  • ± 2.5 % after Calibration

Air Exhaust Port Size

  • 3/8" NPT Female

Air Inlet Size

  • 1/4" NPT Female

Air Pressure Operating Range

  • 2.1 to 3.4 bar, 0.2 to 0.3 MPa

Battery (Recommended Batteries: Duracell, Energizer, Eveready, EN22)

  • 2 AA Alkaline

Cycle Rate

  • 0.15 L/cycle

Flow Range

  • 1.9 to 57 Lpm

Fluid Inlet Size

  • 1/2 & 3/4" BSPP Female

Fluid Outlet Size

  • 1/2 & 3/4" BSPP Female

Inlet & Outlet

  • 1/2 Bspp

Maximum Air Consumption

  • 0.672 m³/min

Maximum Fluid Working Pressure

  • 3.4 bar, 0.3 MPa

Maximum Free Flow Delivery

  • 25 Lpm

Maximum Pump Speed

  • 163 cpm

Maximum Working Pressure

  • 0.3 MPa, 3.4 bar

Minimum Working Pressure

  • 34 MPa, 0.3 bar

Operating Temperature

  • 4.4° to 31.0° C

Operating Temperature Range

  • -25° to 50° C

Pump Weight (Approximate)

  • 2.9 kg

Repeatability (at 2.5 gpm (9.5 Lpm), at 70° F (21° C), with Water & 1 Gallon Dispensed)

  • ± 0.15 %

Sound Power Level (Measured Per ISO Standard 9614-2)

  • At 0.48 MPa, 4.8 bar, at 50 Cycles per Minute = 77 dB(A). at 0.7 MPa, 4 bar at max.

Sound Pressure Level (Measured 1 meter from Pump)

  • 0.48 MPa, 4.8 bar at 50 Cycles per Minute = 67 dB(A), 0.7 MPa, 4 bar at max.

Storage Temperature Range

  • -25° to 50° C

System Weight (Approximate)

  • 15.8 kg

Unit of Measure

  • Factory-set in Quarts

Weight

  • 0.82 kg

Wetted Parts

  • Stainless Steel, Nickel, Fluoroelastomer

Wetted Parts (In Addition to Ball, Seat & Diaphragm Materials)

  • Polypropylene, PTFE, Fluoroelastomer, Stainless Steel

Documentation

Document

Instructions
