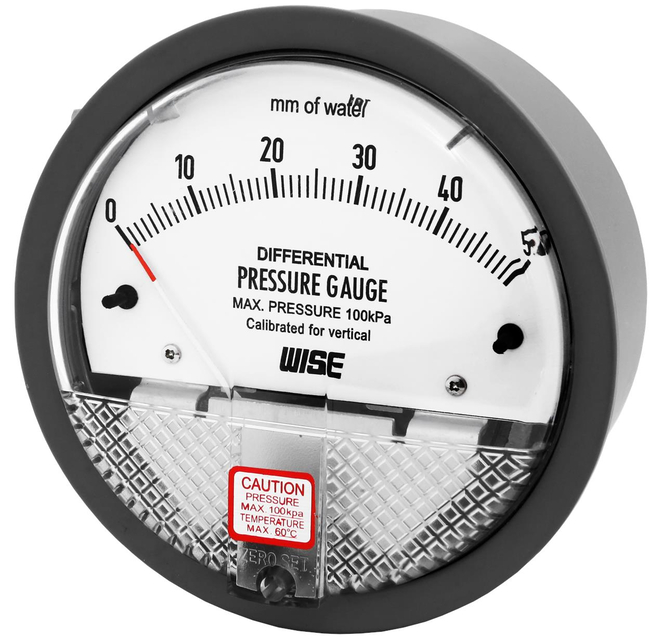

Low Differential Pressure Gauge P880 Series
Brand: Wise Control IncThis gauge is used to measure a pressure of air and gas duct, furnace draft, negative pressure room, also, a differential pressure of filter, venturi tube and etc.
This gauge have a high quality, low cost, good appearance and wide scale range.
Specifications
Brand
Accuracy
- ± 2.0 % of Full Scale
- 0 ~ 3000 mm: ± 4.0 % of Full Scale
- -5 ~ 5, -25 ~ 25 & 0 ~ 10 mm: ± 3.0 % of Full Scale
Case & Cover
- Gray Painted Aluminum Die Casting
Dial
- White Aluminum with Black Graduations
Element (Wetted Parts)
- Silicone Rubber
Nominal Diameter
- 100 mm
Pointer
- Black Painted Aluminum Alloy
Pressure Connection
- 1/8" NPT Female
Scale Range (kPa)
- -0.25 to 0.25 kPa, 0~50 kPa
Temperature Effect
- ± 1.0 % Per 10° C of Full Scale
- Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately
Window Material
- Acrylic Resin
Working Pressure
- Over Pressure Protection: 100 kPa
- Steady Pressure: 75 % of Full Scale
Working Temperature
- Ambient: -10° to 60° C
