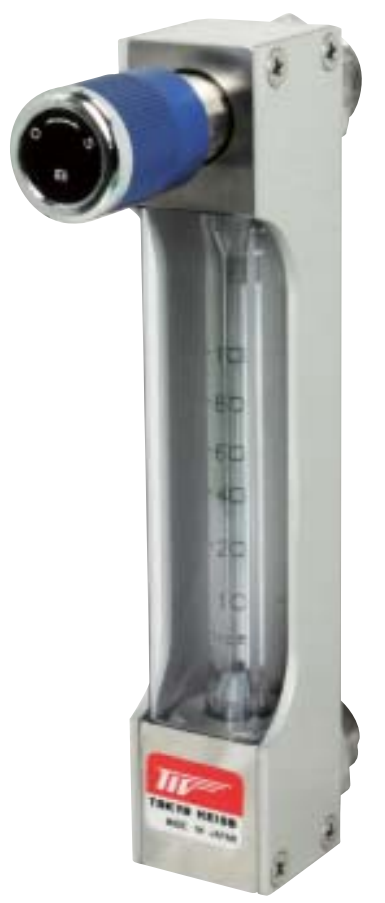

P-880 Purgemeter
Brand: Tokyo Keiso Co, LtdThe P-880 is an area purge-meter for measuring micro flow rates of gases. This purge-meter is equipped with an improved valve to accurately control the flow rate. The P-880 is ideal for measuring and controlling micro flow rates.
Features- Micro flow rate measurement
- Can measure flow rates from 0.15 to 1.5 mL/min (nor) to 6 to 60 L/min (nor)
- Easy flow rate control
- Can control flow rates accurately. The optimum valve will be provided for your specification of inlet and outlet pressures
- Selectable face-to-face dimensions
- Three face-to-face dimensions (115 mm, 130 mm, and 145 mm) are available for various applications.
- Compact, lightweight design
- 3 mm smaller in width and half the weight compared with the P-810
Specifications
Brand
Approvals & Certifications
- CE
- UL
BSP Connection
- 1/4" BSPT Female
- 1/8" BSPT Female
Cover Material
- Transparent PVC
Enclosure, Body Material
- Valve: 316 Stainless Steel
- Wet: Cast Stainless Steel (SCS14)
Gasket Material
- Chloroprene Rubber
- EPDM
- Fluororubber
NPT Connection
- 1/4" NPT Female
- 1/8" NPT Female
VCR / VCO Connection
- 1/4" VCR Female or Equivalent
- 3/8" VCR Female or Equivalent
Welded Connection
- 1/4" Socket Weld End Female or Equivalent
- 3/8" Socket Weld End Female or Equivalent
