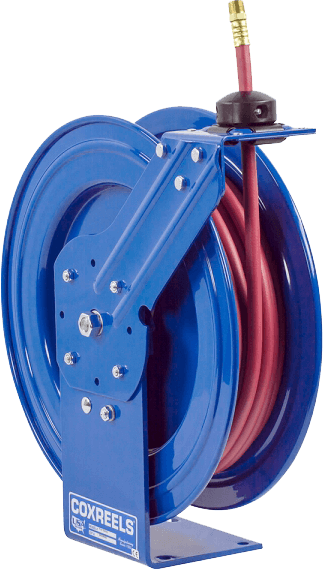

Spring Driven Reels | Alumi-Pro Series

Brand: COXREELS®
Add Product to My Catalog

COXREELS® Alumi-Pro® "Aluminium Professional-Grade" spring driven hose reels have the strength of steel without the weight! The Alumi-Pro® series is modeled after Coxreels' popular P Series line of hose reels, but are uniquely constructed out of high quality aluminum.

They're compact, lightweight, and non-corrosive making them the perfect choice when polypropylene or plastic hose reels are not the preferred choice due to their limited strengthened durability.

Swivel
  • External fluid path with machined solid brass 90° full - flow NPT Swivel inlet
  • swivel seals: NITRILE
Design & Structure
  • Single pedestal reel for applications that require professional grade strength without weight
  • guide arm adjusts to well, floor, vehicle & overhead positions
Retract
  • Spring Rewind
Features
  • Profession grade heavy duty steel construction
  • rolled edges & ribbed discs provide strength & safety
  • leading 2 - year manufacturers limited warranty
  • Made in the U.S.A - sold & shipped worldwide
  • Swivel - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • Cartridge Motor - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
  • CNC Spun Discs- Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4" Aluminum Base- Sturdy single pedestal design with solid one piece aluminum base and support post, no weld, for maximum stability and professional grade strength without the weight.
  • Multi - Position Guide Arm - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • Other Features Include - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.

Specifications

Brand

Maximum PSI

  • 300

Length

  • 25"
  • 30"
  • 50"

Inside Diameter

  • 1/4"
  • 3/8"
  • 1/2"

Hose

  • Optional

Base

  • 1/4" Aluminum
