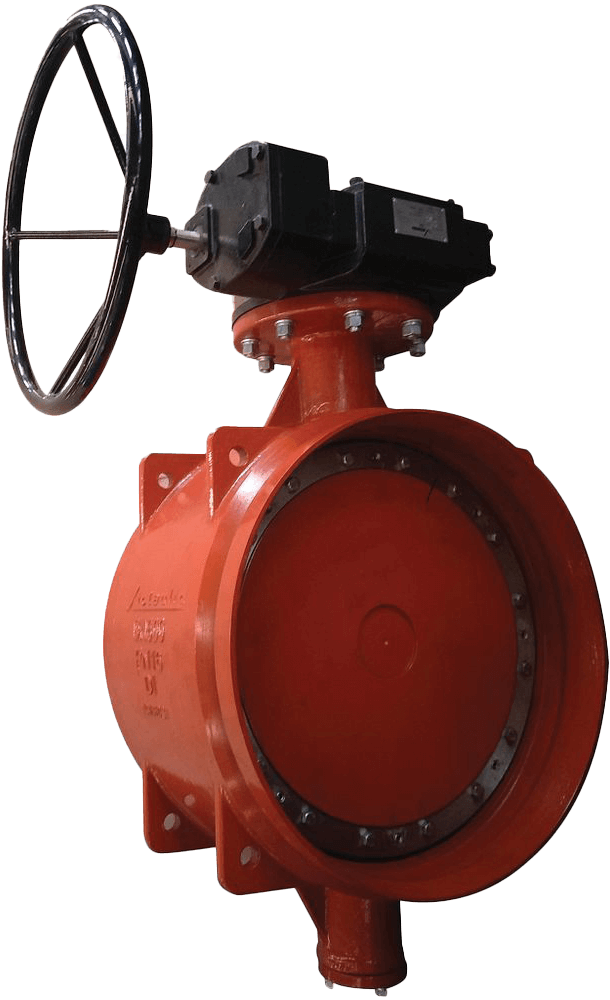

Series W710 AGS Double Eccentric Butterfly Valve
Brand: Victaulic Company
Features
- Available Sizes
- 14 – 24"/DN350 – DN600
- Pipe Material
- Carbon Steel
- Pressure Class
- 232 psi/1600 kPa
- Operating Temperature
- +14°F to +176°F/–10°C to +80°C
- Function
- Used to isolate or regulate flow. Typically used on water services
- Valve is designed for pressures ranging from full vacuum to 232psi/1600kPa and for bi-directional, dead end services to full working pressure.
- Pipe Preparation
- Exclusively for use with pipe and Victaulic products which feature ends formed with the Advanced Groove System (AGS), Cut Groove or Roll Groove (see section 7.0 for Reference Materials).
Specifications
Brand
Body
- Ductile Iron conforming to ASTM A536, Grade 65-45-12, fusion bonded epoxy coated
Disc
- Ductile Iron conforming to ASTM A536, Grade 65-45-12, fusion bonded epoxy coated.
Disc/Seal
- EPDM
Bearing
- Aluminum Bronze
Stem Seals
- EPDM
Seal Retaining Crew
- Stainless Steel conforming to ASTM A276, Type 304
Shaft
- Stainless Steel conforming to ASTM A276, Type 420
O-Ring
- EPDM
Temperature Range
- +14° to +176° F/-10° to +80° C. Recommended for cold and hot water service within the specified temperature range. NOT RECOMMENDED FOR PETROLEUM SERVICES.
Body Seal
- Stainless Steel conforming to ASTM A276, Type 304
Retainer
- Stainless Steel conforming to ASTM A276, Type 304
Bolt
- Stainless Steel conforming to ASTM A276, Type 304
