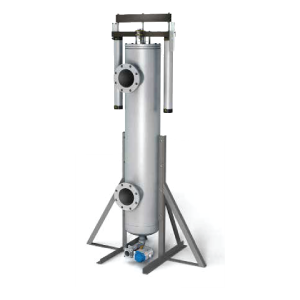

DCF 3000 Mechanically Cleaned Filter
Brand: Eaton CorporationThe dual cleaning disc and twin actuator design of the DCF 3000 mechanically cleaned filter can be fabricated in a variety of materials and options with temperatures up to 400° F.
It is ideal for highly viscous, abrasive or sticky liquids with flow rates of up to 500 gpm.
For water-like liquids, it can handle flow rates up to 1,500 gpm.
Features- Elimination or reduction in disposable filter bags and cartridges minimizes operator handling, inventory costs and waste disposal
- Reduction in product loss, more thorough contaminant purge in a highly concentrated waste stream
- Reduction or elimination of operator intervention for safer operation
- Compact design, lower capital cost to fit most installations
- Stainless steel screens from 15 micron slots to 1/4” perforations to handle a wide range of filtration needs
- Available with Delrin® or PEEK cleaning discs
- Optional PLC controls
- ASME U stamp available
Specifications
Brand
Flow Rate
- Up to 1,100 GPM / 250 m³/hr at 100 μ
Operating Pressure
- 30 to 150 psi (2 to 10.5 bar)
Operating Temperature
- Max 400° F (220° C)
Viscosity
- Water-like to 500,000+
Standard Retention
- 15 to 1,100 microns
Vessel Material
- Stainless Steel
Material of Construction
- Elastomers: EPT/EPDM (Nordel™), Viton, White Nitrile (Food Grade)
- Cleaning Discs: Delrin, PEEK
- Packing: Urethane, Teflon, Viton and Glyon®/Viton
Process Connection
- 4" to 8" 150# ANSI Flanged
Purge Connection
- 2" NPT / 2" BSPT
Power
- Controllers: 115 Vac or 230 Vac, 50/60 Hz
- Semi-Auto Voltage: 24 VDC, 115 VAC, 230 VAC
- Paper Coatings
- Pcc/gcc Slurries
- Phenolic Resins
- Detergents
- Petroleum Based Greases
- Ethanol Processing
- Hot Fry Oils
- Cip Fluids (Sodium Hydroxide)
- Starch
- Lime Slurries
- Adhesives
- Curtain Coaters
- Nutricuticals
- Machining COolants
- Paint
- Ink
- Chocolate
- Edible oils
- Tallow
Documentation
Data Sheets
Installation Manual
- Installation and Maintenance - EATON easy500 Series Timer Package pdf 268 KB
- Installation and Maintenance - Controller w/HMI interface for the MCF/DCF Single Unit pdf 49 KB
- Installation and Maintenance - Controller w/HMI interface for the MCF/DCF Single Unit pdf 715 KB
- Installation and Maintenance - Controller wEaton HMi interface for the MCF/DCF Plex pdf 67 KB
- Installation and Maintenance - DCF Series Semi-Auto Control pdf 626 KB
