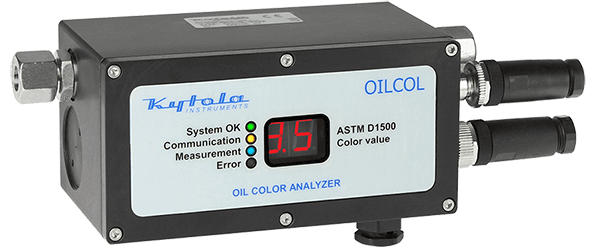

OILCOL Oil Color Analyzer
Brand: Kytola Instruments OyThe OILCOL oil Color Analyzer is an online instrument based on visible light absorbance - transmittance to indicate the ASTM D1500 color value of oil.
As the measurement is performed online, the response is continuous and fast, which can be crucial in order to detect sudden changes in oil quality and further to be able to react before any failures in the process equipment occur.
Time consuming and expensive sampling and laboratory analyses are also avoided.
Changes in oil colour indicate quality deviations.
The importance of oil colour measurement is undistiputable.
Many factors, affecting the quality of oil, such as degree of refining, oxidisation, particles, ageing, etc. also have a direct impact on the colour of oil.
Generally speaking, oil darkens as it ages due to changes in the state of these, among other factors.
Measuring the colour of oil provides a good general picture of possible quality variation or oil aging.
Although colour on its own may not necessarily always indicate anything absolute about oil quality or its functional properties, the change in the colour is at least a clear indication that some property has changed.
Thus, this can serve as an advance warning of, for example, early damage in a lubrication system, an approaching need for an oil change, or that something has changed in the refining process.
A colour change that exceeds - for example, empirically - set limits, makes it possible to take proactive measures and, if necessary, perform a more detailed analysis of the oil in use or processed.
Features- Online Measurement
- ASTM D1500 Scale from 0.5 to 8.0
- Display Resolution 0.1
- Accuracy ±0.3 - as the ASTM Scale Step is 0.5
- Easy to Install
- Sturdy Construction
- Serial Connection - Modbus
- 4 – 20 mA Output
Specifications
Brand
Model
- OILCOL
Measuring Range
- ASTM D1500 Scale from 0.5 to 8.0
Accuracy
- ± 0.3 (As the ASTM D1500 Scale Step is 0.5)
Oil Connections
- 10 mm or 3/8" Compression Fitting
Air Cooling Connection
- 8/6 mm (OD/ID) Hose
Display
- LED
- 7 Segments
- 2-digits
Maximum Pressure
- 20 bar
Oil Filtration Recommendation
- 500 μm or Better
Oil Viscosity Range
- 0 to 500 cSt
Oil and Ambient Temperature
- -20° C to +60° C (-20° C to +70° C with Cooling Option)
Communication
- Modbus RTU (RS-485)
Supply Voltage
- 24 Vdc
Supply Current
- 0.1 A max
Current Output
- 4-20 mA
Enclosure
- Aluminium
IP Class
- IP65
Weight
- 1.95 kg
- Lubricating Oils
- Heating Oils
- Diesel fuel Oils
- Mineral insulating Oils
- Hydraulic Oils
