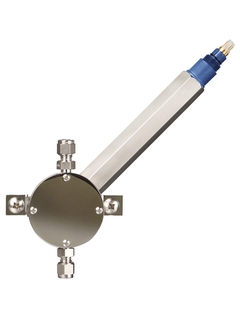

Analog pH sensor Purisys CPF201
Brand: Endress+Hauser Group Services AG
Purisys CPF201 is the specialist for pure and ultrapure water. Its integrated stainless steel assembly provides stable and flow-independent measurement at lowest conductivities. Purisys ensures optimum water quality and guarantees highest safety of your products or assets.Features
- Stable pH reading and response
- Elimination of flow dependency errors
- Patented porous PTFE reference junction
- Easy installation
Specifications
Measuring principle
- Potentiometric
Application
- Ultra pure water (<100µS/cm); power plants
Characteristic
- Bypass measurement system made of stainless steel with gel electrode and salt storrage for measurements in ultra pure water.
Measuring range
- pH 1-13 (<100µS/cm)
Design
- Electrode in stainless steel boundary surface installed in a stainless steel flow assembly for potential free measurements in ultrapure water with lowest conductivity.
Material
- Glass, stainless steel
Dimension
- Installation on a plate (305 mm x 305 mm).
- (11.89 inch x 11.89 inch)
Process temperature
- 2°C - 75°C
- (36°F - 167°F)
Process pressure
- max. 3 bar
- (43.5 psi)
Temperature sensor
- Optional with integrated Pt100 oder Pt1000.
Connection
- TOP68 connection head or fixed cable connection.
Ingress protection
- IP68
- Ultra Pure Water (<100 µS/cm)
- Power Plants
