DDD Din Mounted Digital Panel Meter

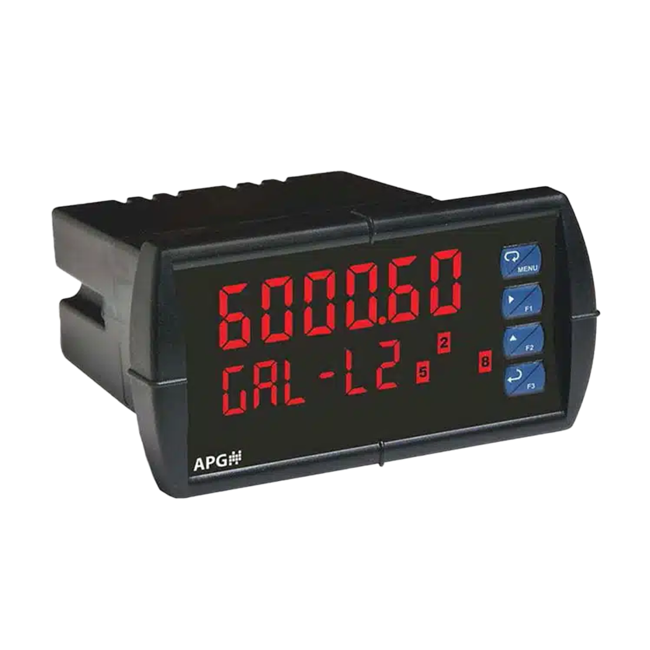

Brand: Automation Products Group - APGThe Series DDD Din Mounted Digital Display is a two-line, analog-input panel meter with multiple output and display options. With two configurable, six-character lines and eight LED alarm indicators, the DDD fits a lot of information in a compact area. The DDD is easily programmed with the four buttons on the face or through a USB connection to a PC. Add an optional bright, sunlight-readable display, and the DDD has the versatility and functionality you need in a panel meter.
Features
- Easy to Program
- Strong Face in a Durable Panel
- Accuracy
Specifications
Accuracy
- ± 0.03% of calibrated span
Approvals
- CE
- UL/C-UL Listed
Display
- 2 lines, 6 characters each
- Top line: 0.6" (15 mm) characters
- Bottom line: 0.46" (12 mm) characters
- Optional Sunlight Readable Bright Display (model DBD)
Display Update Speed
- 200 ms (5 updates per second)
Front panel rating
- NEMA 4X, IP65
Input Contact/Digital Input
- Contact Voltage: 3.3 VDC
- Digital Input Logic High: 3 - 5 VDC
- Digital Input Logic Low: 0 - 1.25 VDC
- Default Logic: Normally Open/Low
Input Impedence
- Voltage Inputs: > 500 k&ohm
- Current Inputs: 50 - 100 &ohm
Input Options
- 0-20 mA, 4-20 mA
- 0-5 VDC, 1-5 VDC, 0-10 VDC, ± 10 VDC
Operating Temperature
- -40° - 149° F (-40° - 65°C)
Output Options
- 2 or 4 SPDT Relays
- Isolated 4-20 mA
Output Transmitter Power Supply
- Isolated 24 VDC @ 40 mA
Sensor Power Supply
- 24/10/5 VDC selectable
- 200 mA for VAC models
- 100 mA for VDC models
Size
- 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm)
SPDT Relays
- 3 A @ 30 VDC / 125/250 VAC resistive loads
- 1/14 HP (≈ 50 W) @ 125/250 VAC resistive loads
Storage Temperature
- -40° - 185°F (-40° - 85°C)
Supply Voltage
- VAC: 85 - 265
- VDC: 12 - 24
Weight
- 9.5 oz (269 g)
