Automation Products Digital Pressure Gauge, PG10 Series

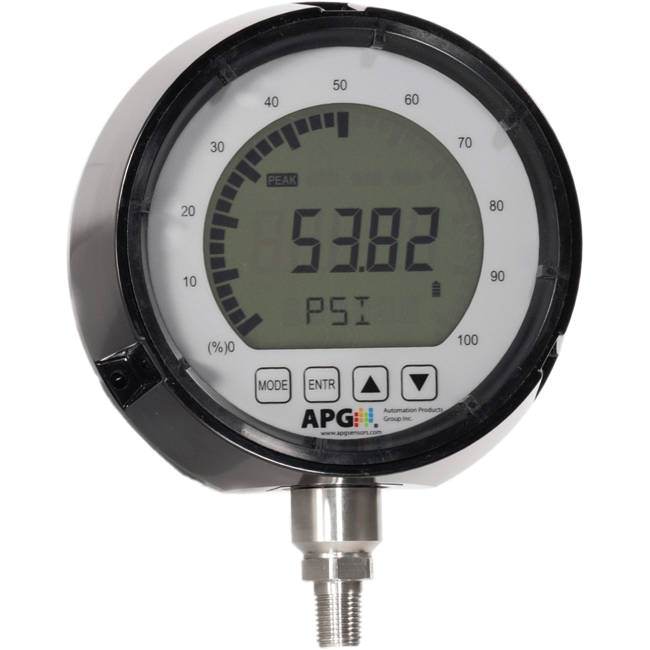

PG10 Digital Pressure Gauge

Brand: Automation Products Group - APG
Add Product to My Catalog

Automation Products Digital Pressure Gauge, PG10 Series Automation Products Digital Pressure Gauge, PG10 Series
The PG10 Digital Pressure Gauge gives you true at-a-glance readability with the large 5-digit display and 270º radial bar graph. Built-in datalogging headlines a long list of standard funtions.
Features
  • Large, full 5-digit display with 0.68 in. characters
  • Available ranges from vacuum up to 10,000 psi
  • Tare, Peak Hold, Max/Min, and data-logging functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2, lbf)
  • Available RS-485/Modbus Output



1 - 7 of 7 Part Numbers
PG10-100-PSIG-F1-L0-E0-C0-P0
PG10-100-PSIG-F1-L0-E0-C0-P0
APG PG10 Digital Pressure Gauge, 100 psi Gauge, Rear Port, Battery, No Relay, 1/4"-18 MNPT, ± 0.25%
PG10-100-PSIG-F6-L0-E0-C0-P0-N1
PG10-100-PSIG-F6-L0-E0-C0-P0-N1
APG PG10 Digital Pressure Gauge, 100 PSIG, Rear Port w/Panel Bracket Inst, No Relay, 1/4-18 NPTM
  • Pressure Range - psi: 100
  • Pressure Type - Gauge
  • Port - Rear Panel Mount Bracket
  • Output - (2) AA Alkaline Batteries
  • Relay - No Solid State Relays
  • Process Connection - 1/4"-18 Male NPT
  • Accuracy - ± 0.25%, NIST Certification
PG10-10K-PSIG-F0-L0-C0-P0-N0
PG10-10K-PSIG-F0-L0-C0-P0-N0
APG PG10 Digital Pressure Gauge, 10,000 psi Gauge, Lower Port, Battery,No Relay, 1/4"-18 MNPT, ± 0.25%
PG10-10K-PSIS-F0-L0-C0-P0-N0
PG10-10K-PSIS-F0-L0-C0-P0-N0
APG PG10 Digital Pressure Gauge, 10,000 psi Sealed, Lower Port, Battery,No Relay, 1/4"-18 MNPT, ± 0.25%
PG10-15-PSIA-F0-L0-C0-P0-N0
PG10-15-PSIA-F0-L0-C0-P0-N0
APG PG10 Digital Pressure Gauge, 15 psi Absolute, Lower Port, Battery,No Relay, 1/4"-18 MNPT, ± 0.25%
PG10-5-PSIA-F0-L0-C0-P0-N0
PG10-5-PSIA-F0-L0-C0-P0-N0
APG PG10 Digital Pressure Gauge, 5 psi Absolute, Lower Port, Battery,No Relay, 1/4"-18 MNPT, ± 0.25%
PG10-5K-PSIA-F0-L0-C0-P0-N0
PG10-5K-PSIA-F0-L0-C0-P0-N0
APG PG10 Digital Pressure Gauge, 5000 psi Absolute, Lower Port, Battery,No Relay, 1/4"-18 MNPT, ± 0.25%
1 - 7 of 7 Part Numbers

View_Details

Specifications

Brand

Accuracy

  • ± 0.1 % of Span
  • ± 0.25 % of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4" BSP Male

Compensated Temperature

  • -7° to 54° C (20° to 130° F)

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Weather-Resistant Injected Molded Phenolic Plastic

Environmental Protection

  • IP65

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4" NPT Male
  • 1/8" NPT Female

Mounting

  • Bottom Mounting
  • Rear Mounting
  • Rear Mounting with Panel Bracket

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 0-2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,894
  • psi: 0 to 10,000

Pressure Type

  • Gauge

Relay Operation

  • Solid State Relays

SAE Connection

  • 7/16"-20 SAE Male

Size

  • Face: 5.45"

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 3.6 V Lithium
  • 9-28 Vdc
  • 9 V Lithium Battery

Switch Type

  • SPDT

Wetted Materials

  • 316L Stainless Steel
