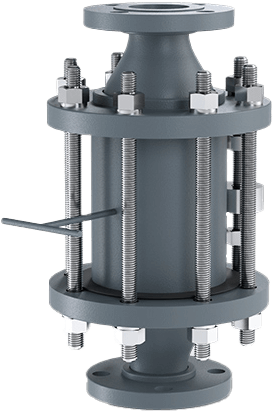

Series 35000E Detonation Flame Arrester
Brand: Protectoseal CompanyProtectoseal’s Series 35000E Detonation Flame Arrester is designed to withstand deflagrations, stable detonations and overdriven/unstable detonations.
This arrester is bi-directional, capable of stopping a flame or detonation approaching from either direction in a piping system.
Suitable for use with International Electrotechnical Commission (IEC) Explosion Group IIA vapors, generally equivalent to National Electrical Code (NEC) Group D vapors.
For arresters suitable for use with Explosion Groups IIA or IIB3 (NEC Groups D or C) vapors refer to Series 26000E / 36000E.
Features- Series 35000E - Sizes DN 250 (10"), DN 300 (12"), DN 350 (14"), DN 400 (16”) and DN 450 (18")
- Suitable for use with IEC Explosion Group IIA (NEC Group D) Vapors
- Conforms to the latest ATEX Directive, ISO 16852
- Improved flow and reduced pressure drop
- Optional connections for drains, pressure taps or temperature probes
- Tested by recognized independent laboratories
- Available in Carbon Steel, Stainless Steel & Alloy C276
Specifications
Brand
Approvals & Certifications
- ATEX
Approvals & Certifications
- ISO 16852
Enclosure, Body Material
- 304 Stainless Steel
- 316 Stainless Steel
- Alloy C-276 or Hastelloy
- Carbon Steel
Flange Size - 10” (DN 250)
- 10" (DN 250) - 150#
- 10" (DN 250) - PN 16
Flange Size - 12” (DN 300)
- 12" (DN 300) - 150#
- 12" (DN 300) - PN 16
Flange Size - 14” (DN 350)
- 14" (DN 350) - 150#
- 14" (DN 350) - PN 16
Flange Size - 16” (DN 400)
- 16" (DN 400) - 150#
- 16" (DN 400) - PN 16
Flange Size - 18” (DN 450)
- 18" (DN 450) - 150#
- 18" (DN 450) - PN 16
