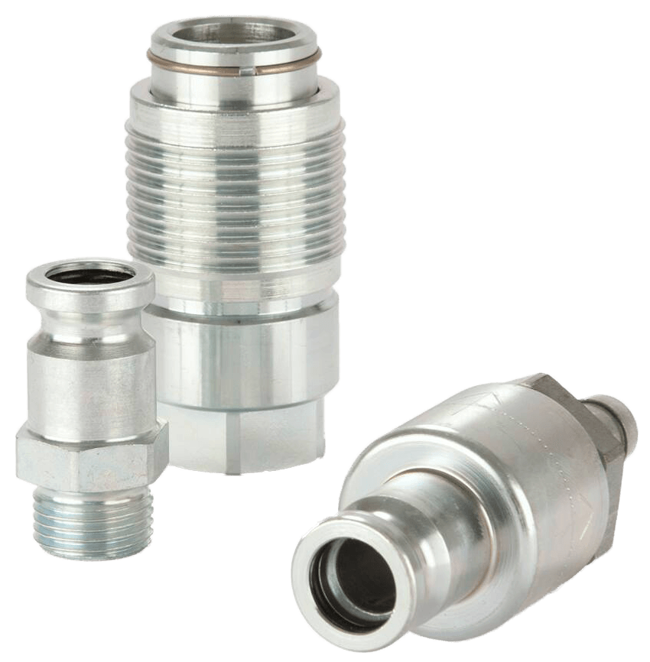

Quick Coupling with Parker Own Profile, Series 29

Brand: Rectus - by Parker
Add Product to My Catalog

Parker's Series 29 is a robust coupling system made of steel, which is particularly suited to use in the construction industry and mining.

This coupling system is developed for single-hand operation. The UltraFlo valve guarantees optimum flow and low pressure drop.
Features
  • UltraFlo valve for optimum flow and low pressure drop
  • Single-hand operation for easy and fast connection

View_Details

Specifications

Brand

Applications

  • Pneumatic & Fluid Handling

Diameter Nominal (DN)

  • Nominal: 13 mm

End Fitting Type

  • Hose Barb
  • Male Thread
  • Female Thread

External Hex (mm)

  • 24 to 32 mm

Flow Rate (Lpm)

  • 2550 L/min

Interchange Type

  • Rectus Profile

Length (mm)

  • 44 to 101 mm

Material

  • Steel

Maximum Working Pressure (bar)

  • 35 bar

Maximum Working Pressure (psi)

  • 500 psi

Maximum Working Temperature (°C)

  • 100° C

Maximum Working Temperature (°F)

  • 212° F

Media

  • Pneumatic Media

Minimum Working Temperature (°C)

  • -20° C

Outside Diameter (mm)

  • 22 to 40 mm

Seal Material

  • NBR

Valve Style

  • Poppet

Valving

  • Yes or No according to the version

Version

  • Single Shut-Off

  • Construction
  • Mining
