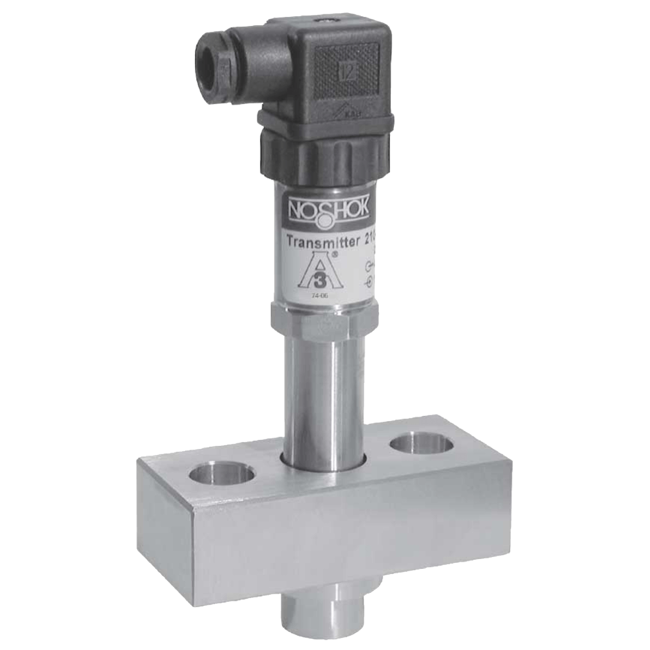

21 Series Sanitary Pressure Transmitter
Brand: Noshok, Inc
Features
- Ranges from psig: 0 to 1,000 psig through 0 to 15,000 psig
- Current and Voltage Outputs Available
- 316 Stainless Steel Wetted Parts
- Can be Cleaned-in-place (CIP) or Steamed-in-place (SIP)
- Meets 3A Requirements for the Food and Beverage, Dairy, Pharmaceutical and Biotechnology Industries
- ASME BPE Compliant
- CE Compliant to Suppress RFI, EMI and ESD
Specifications
Brand
Accuracy
- ± 0.125 % of Full Scale (Optional)
- ± 0.25 % of Full Scale BFSL
Adjustment
- ± 10 % of Full Scale for Zero & Span
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Applications
- High Pressure Processing
- Homogenization Systems
- Pasteurization Systems
Approvals & Certifications
- ASME BPE Compliant
- CE Compliant to Suppress RFI, EMI & ESD
Burst Pressure
- 3 x Full Scale for psi: 0 to 15,000
- 4 x Full Scale for Ranges psi: 0 to 300 through 0 to 10,000
Compensated Temperature
- 0° to 80° C (32° to 176° F)
Connection Material
- 316 Stainless Steel
Electrical Connectors
- 36" Cable Attached to Hirschmann
- 6-Pin Bendix
- Hirschmann (DIN EN 175301-803 Form A)
- Hirschmann Connection with ISO 4400 1/2" NPT Conduit
- Integral 36" Cable
- M12 x 1, 4-Pin
Electrical Protection
- Overvoltage
- Reverse Polarity
- Short Circuit
Electromagnetic Rating
- ESD Protection
- RFI/EMI
Enclosure, Body Material
- 316 Stainless Steel
Environmental Protection
- IP65
Fill Material
- FFL77 White Oil
Load Limit
- ≤ (VPower-10) / 0.020 Amp
Output
- 0-10 Vdc, 3-Wire
- 0-5 Vdc, 3-Wire
- 1-11 Vdc, 3-Wire
- 1-5 Vdc, 3-Wire
- 1-6 Vdc, 3-Wire
- 4-20 mA, 2-Wire
Power Requirement
- 10 to 30 Vdc (4-20 mA, 2-Wire, 0-5 Vdc, 3-Wire, 1-5 Vdc, 3-Wire, 1-6 Vdc, 3-Wire)
- 14 to 30 Vdc (0-10 Vdc, 3-Wire, 1-11 Vdc, 3-Wire)
Pressure Cycle Limit
- 150 Hz
Pressure Range
- bar: 0 to 1,034
- kPa: 0 to 103,400
- psig: 0 to 15,000
Pressure Type
- Gauge
Process Temperature
- -30° to 100° C (-20° to 212° F)
Proof Pressure
- 1.5 x Full Scale for 0 psi to 15,000 psi
- 1.75 x Full Scale for Ranges psi: 0 to 300 through psi: 0 to 10,000
Response Time
- ≤ 1 ms (Between 10 % & 90 % of Full Scale)
Shock
- 1000 G as Per IEC 60068-2-27
Size
- Clamp: 1-1/8" Flange
Span & Zero Effect
- ± 0.017 % of Full Scale/°F
Stability
- ≤ ± 0.2 % of Full Scale for 1-Year, Non-Accumulating
Storage Temperature
- -40° to 100° C (-40° to 212° F)
Vibration
- 30 G as Per IEC 60068-2-6
Wetted Materials
- 316 Stainless Steel for Vacuum through 300 psi (Measuring Element)
- 630 Stainless Steel for ≥ 500 psi (Measuring Element)
- High Pressure Processing
- Pasteurization Systems
- Homogenization Systems
