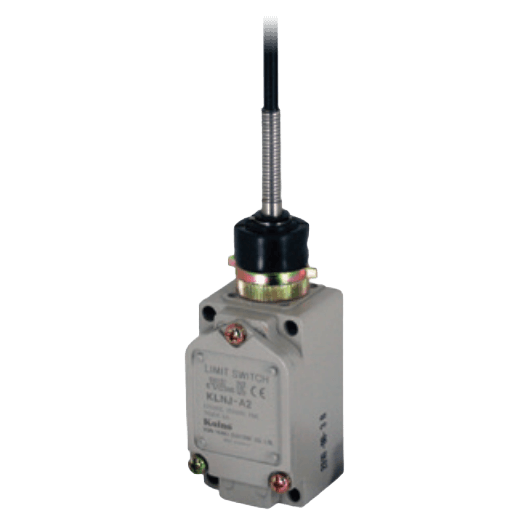

KLNJ-A2 Whisker Switch

Brand: Kele

The KLNJ-A2 whisker switch is a high-quality, multidirectional contact switch with a plastic coated spring-rod whisker. It is perfect for sensing damper blade position and can be used to provide position status of valve linkages or other mechanical devices.

Features:
  • Plastic coated spring-rod whisker for long life
  • Captive wiring cover screws to save time
  • Heavy duty 10 A at 120 Vac contacts

1 - 1 of 1 Part Numbers
KLNJ-A2
KLNJ-A2
  • Model - Whisker Switch with Coated Spring-Rod & 10 A, 120 Vac Contacts
1 - 1 of 1 Part Numbers

Specifications

Brand

Approvals & Certifications

  • CE
  • NRNT8.E117960
  • UL (C) Recognized

Conduit Connection

  • 1/2" NPT

Electrical Connectors

  • Screw Terminal - Wiring Terminations

Electrical Contacts

  • Normally Closed
  • Normally Open

Electrical Rating

  • 10 A at 120 Vac
  • 10 A at 24 Vac
  • 6 A at 24 Vdc

Environmental Protection

  • IP67

Operating Temperature

  • -25° to 55° C (-13° to 131° F)

Rotation

  • 15° Make - Switch Angle
  • 6° Reset - Switch Angle

Switch Type

  • Whisker Switch
