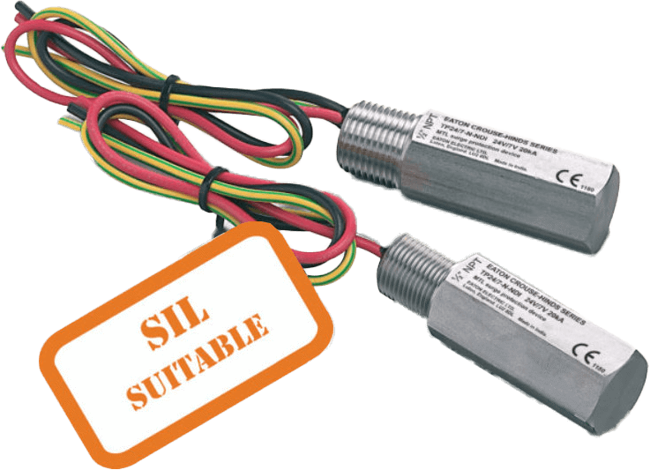

TP24/7 Range Data and Signal Surge Protection

Brand: MTL Instruments
Add Product to My Catalog

The TP24/7 surge protection device is a unique unit providing a level of protection for field-mounted transmitters that is far in excess of the optional transient protection facilities available from the transmitter manufacturers - without involving any additional wiring, conduit modifications or other expensive extras.
Features
  • Specifically Designed for Multivariable Transmitters and Level Transmitters
  • Four Wires Protected, One Pair at 12V to 24V and One Pair at 7V - e.g. RS485
  • Easy and Direct Mounting - Simply Screws into Spare Conduit Entry
  • Intrinsically Safe and Flameproof to CENELEC Standards
  • FM for US and Canada and ATEX Approved

1 - 5 of 5 Part Numbers
TP24/7-G-NDI
TP24/7-G-NDI
Certified process transmitter surge protection device - G 1/2”: BSP 1/2”
TP24/7-I
TP24/7-I
Non-certified process transmitter surge protection device - 20mm ISO thread
TP24/7-I-NDI
TP24/7-I-NDI
Certified process transmitter surge protection device - 20mm ISO thread
TP24/7-N
TP24/7-N
Non-certified process transmitter surge protection device - 1/2” NPT thread
TP24/7-N-NDI
TP24/7-N-NDI
Certified process transmitter surge protection device - 1/2” NPT thread
1 - 5 of 5 Part Numbers

Specifications

Brand

Maximum Surge Current

  • 10 kA peak (8/20 μs waveform)

Leakage Current

  • Less than 10 μA at Max. working voltage

Working Voltage

  • 12 V to 24 Vdc power

Bandwidth

  • 1 MHz

Resistance

  • No resistance introduced into loop

Ambient Temperature Limits

  • -40° to +60° C (-40° to +140° F) (working)
  • -40° to +85° C (-40° to +185° F) (storage)

  • Equipment is Suitable for Use in Hazardous Area Applications
  • Product has been Assessed for Functional Safety Applications

Documentation

Product Information

User Guide
