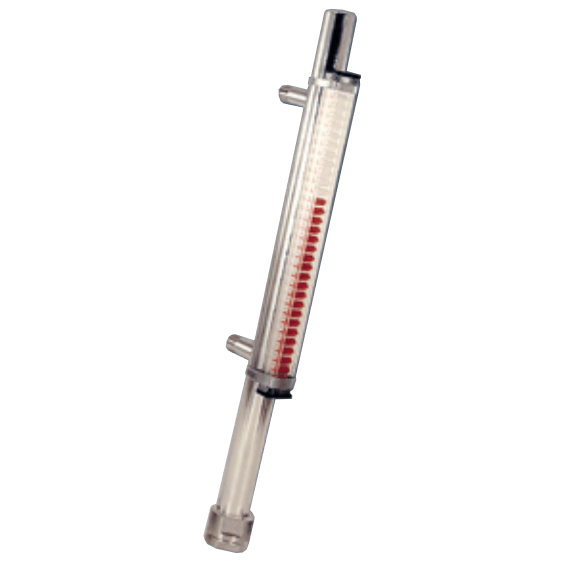

Barksdale Mini Level Site, Model LMSSM, LMTBM, LMTSM, LMSBM

Model LMSSM, LMTBM, LMTSM, LMSBM Mini Level Site

Brand: Barksdale
Add Product to My Catalog

Our Alloy Mini LevelSite® provides a reliable, accident-proof solution to your unique level measuring problems, especially in applications where space is at a premium.

Welded stainless steel construction provides for long life and eliminates the risk of broken or cloudy glass commonly encountered with traditional sight glasses. Large, easy to read flags are completely isolated from the process media and can be viewed from over 100 feet away.

Each Mini LevelSite® is customized to meet your unique specifications, and is available in lengths of up to 10 feet (3 meters).

Barksdale's Mini LevelSite® is suitable for use with oil water aggressive liquids in a wide variety of industrial applications, including food beverage and textile dyeing equipment.
Features
  • Easy replacement for sight glasses
  • Small diameter ideal for use in tight spaces
  • Rugged construction for long life and maintenance free use
  • Customized to meet your exact specifications

Specifications

Brand

Diameter

  • Inner Float Housing: 1.57" (40 mm)

Drain, Vent Valves & Plug

  • 1/2" NPT Male

Enclosure, Body Material

  • 316 Stainless Steel
  • Buna
  • Titanium

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ANSI

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - 150# ANSI

Flange Size - 3/4” (DN 20)

  • 3/4" (DN 20) - 150# ANSI

Flange Type

  • Raised Face (RF)

Fluid Specific Gravity

  • 0.62 Lg/cm³ Min. - Buna
  • 0.85 g/cm³ Min. - Stainless Steel & Titanium

Length

  • 20 ft (6 m)

Materials of Construction

  • Float: 316 Stainless Steel
  • Rotating Flag Assembly: Polycarbonate

NPT Connection

  • 1" NPT Male (For LMSSM Models Only)
  • 1/2" NPT Female
  • 1/2" NPT Male
  • 3/4" NPT Female
  • 3/4" NPT Male

O-Ring Material

  • Internal: Teflon

Operating Pressure

  • psig: 240 (kPa: 1,600, bar: 16) - Max.

Operating Temperature

  • 150° C (302° F) - Max.

Pressure Range

  • Vacuum to psig: 240 (kPa: 1,600, bar: 16) at 38° C (100° F)

Proof Pressure

  • 1.5 x Operating Pressure

Sensor, Probe Style

  • Float

Viscosity

  • < 2,500 CP

  • Hot Water/Condensate Steam Systems
  • Industrial Refrigeration
  • Lube Oil Console Systems
  • Marine Applications
  • Scrubbers
  • Semiconductor Industry
  • Solvent Recovery Systems
  • Storage Tanks

Documentation

Data Sheets
