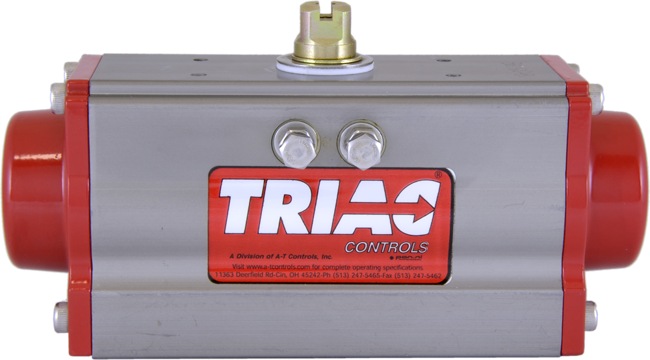

Rack & Pinion Pneumatic Actuator
Brand: A-T Controls, Inc
TRIAC® pneumatic rack and pinion actuators are designed and manufactured to provide the highest cycle-life on the market.
We can accessorize them to accomplish virtually any control requirement.
They are available with various mounting dimension configurations and span eleven models for appropriate torque compatibility.
Features- Standard Working Temperature -5ºF to 175ºF
- Low and High Temperature Options
- Maximum Working Pressure 150 psig
- Operating Media: Clean, Dry Air, Non-corrosive Gas or Light Hydraulic Oil
- Air Supply 40 psi - 150 psi
- Rotation 100º
- Double Acting or Spring Return
- Torques to 56,000" lbs.
- Common End Caps for DA and SR
- Substantial Pinion Bearings Mean High Cycle Life
- Corrosion Resistant Hard-anodized Aluminum Finish
- Nickel Plated and PTFE Infused Options
- Standard Accessory Mounting; NAMUR, VDI/VDE 3845
- Standard Valve Mounting Pad: ISO 5211 - Models TR/3R10 - 2R/3R3500
- Wide Base for Direct Mount to Many Butterfly Valves
- Custom Mounting Configurations Available in Quantity
- Permanently Lubricated Units
- Each Unit Serialized
1 - 12 of 6,366 Part Numbers
2CI1200DA
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Standard Buna (-5° F to 175° F)
- Travel Stops - Standard
2CI1200DAE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Standard Buna (-5° F to 175° F)
- Travel Stops - Extra Long
2CI1200DALT
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Low Temperature Buna (-45° F to 175° F)
- Travel Stops - Standard
2CI1200DALTE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Low Temperature Buna (-45° F to 175° F)
- Travel Stops - Extra Long
2CI1200DAR
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Standard Buna (-5° F to 175° F)
- Travel Stops - Standard
2CI1200DARE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Standard Buna (-5° F to 175° F)
- Travel Stops - Extra Long
2CI1200DARLT
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Low Temperature Buna (-45° F to 175° F)
- Travel Stops - Standard
2CI1200DARLTE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Low Temperature Buna (-45° F to 175° F)
- Travel Stops - Extra Long
2CI1200DARV
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Viton (0° F to 300° F)
- Travel Stops - Standard
2CI1200DARVE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting (Reverse-Acting)
- Seal Material - Viton (0° F to 300° F)
- Travel Stops - Extra Long
2CI1200DAV
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Viton (0° F to 300° F)
- Travel Stops - Standard
2CI1200DAVE
- Number of Travel Stops - Double Travel Stops
- Mounting - Direct Mount to Centerline BFV
- Actuator Size - 1200
- Type of Actuator - Double-Acting
- Seal Material - Viton (0° F to 300° F)
- Travel Stops - Extra Long
1 - 12 of 6,366 Part Numbers
Specifications
Brand
Actuator Type
- Double-Acting (Reverse Acting) Configuration
- Double-Acting Configuration
- Spring Return Fail Clockwise Configuration
- Spring Return Fail Counter-Clockwise Configuration
Mounting
- Direct Mount to Centerline BFV
- ISO 5211 Mounting Patterns
Options
- Extra Long Travel Stops
Seal Type
- Low Temperature Buna Seals
- Standard Buna Seals
- Viton Seals
Springs
- 5 Springs Per Side (SR & SO Only)
- Number of Springs Per Side (1,2,3,4,6) (SR & SO Only)
Standard Features
- Corrosion Resistant Materials
- DA & SR Common End Caps
- High Cycle Life
Torque
- 1,300 in/lb
- 100 in/lb
- 12,000 in/lb
- 17,500 in/lb
- 2,000 in/lb
- 200 in/lb
- 25,000 in/lb
- 3,000 in/lb
- 35,000 in/lb
- 400 in/lb
- 5,000 in/lb
- 8,500 in/lb
- 800 in/lb
