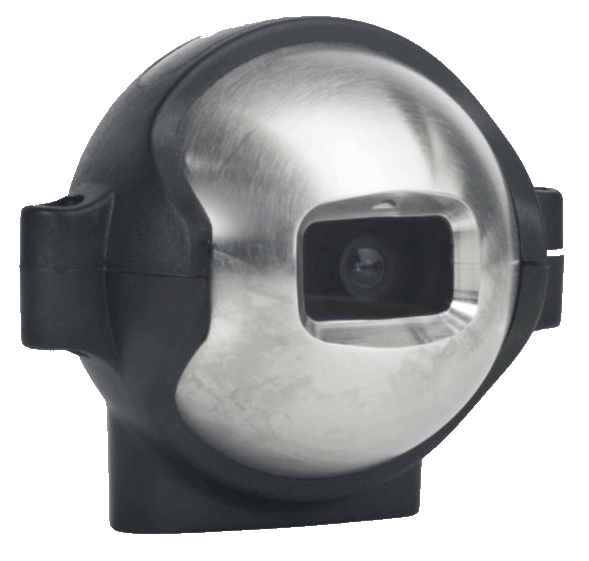

Compact camera EC-710

Compact Camera EC-710

Brand: R. STAHL AG
Add Product to My Catalog

The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available.

The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions.

The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
Features
  • Analogue compact camera with fixed focus
  • Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas
  • The world's smallest explosion proof camera: only 55 mm
  • Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

1 - 7 of 7 Part Numbers
202206
202206
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 100 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 81° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue compact camera with fixed focus Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-081P
  • Title Product Variant Technical Data - EC-710-081P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
202207
202207
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 150 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 70° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue compact camera with fixed focus Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-070P
  • Title Product Variant Technical Data - EC-710-070P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
202208
202208
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 350 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 33° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue PAL compact camera with a telescopic viewing angle of 33° Certified acc. to ATEX, IECEX, NEC, CEC and TR (EAC) for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-033P
  • Title Product Variant Technical Data - EC-710-033P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
212979
212979
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 1500 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 12° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue PAL compact camera with a telescopic viewing angle of 12° Certified acc. to ATEX, IECEX, NEC, CEC and TR (EAC) for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-012P
  • Title Product Variant Technical Data - EC-710-012P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
212980
212980
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 1100 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 23° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue PAL compact camera with a telescopic viewing angle of 23° Certified acc. to ATEX, IECEX, NEC, CEC and TR (EAC) for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-023P
  • Title Product Variant Technical Data - EC-710-023P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
212981
212981
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 240 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 44° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue PAL compact camera with a viewing angle of 44° Certified acc. to ATEX, IECEX, NEC, CEC and TR (EAC) for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-044P
  • Title Product Variant Technical Data - EC-710-044P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
212982
212982
R. STAHL Compact Camera Stationary Camera
Analogue compact camera with fixed focus

Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas

The world's smallest explosion proof camera: only 55 mm

Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges

Ambient Conditions

  • Ambient temperature - -40 °C ... +75 °C
  • Ambient temperature max. - +75 °C
  • Ambient temperature min. - -40 °C

Camera data

  • Focus - Fixed focus
  • Lens - Chemically hardened float glass 5-7x harder than conventional glass
  • Minimum illumination color (ICR-OFF) - 1.50 F1.2
  • Minimum working distance - 200 mm
  • Resolution - 470 TVL
  • S/N Ratio - 52 dB (Min) / 60 dB (Type)
  • Sensor - 1/4 CCD
  • Total pixels - 795 (H) x 596 (V)
  • TV system - PAL
  • Viewing angle - 52° fixed
  • White balance - Auto, AWC, fixed Automatic white balance AWB, AWT (3200-10,000K) Fixed (3200K)

Electrical Data

  • Rated operational current AC - 0.250 - 0.250 A
  • Rated operational voltage DC - 12.00 - 12.00 V

Explosion Protection

  • Application range (zones) - 1, 2, 21, 22
  • ATEX dust certificate - 09 ATEX 0102X
  • ATEX gas certificate - 09 ATEX 0102X
  • Certificate EAC - TC RU C-DE.ГВ.04.В.00260
  • Certifications - IECEx, ATEX, EAC, NEC, CEC
  • Dust explosion protection ATEX - II 2 D Ex mb IIIC T125 °C Db
  • Dust explosion protection EAC - Ex mb IIIC T85 °C, T100 °C, T125 °C
  • Dust explosion protection IECEx - Ex mb IIIC T125 °C Db
  • Gas explosion protection ATEX - II 2 G Ex mb IIC T4 Gb
  • Gas explosion protection EAC - 1 Ex mb IIC T6, T5, T4 Gb X
  • Gas explosion protection IECEx - Ex mb IIC T4 Gb
  • IECEX dust certificate - KEM 09.0039X
  • IECEX gas certificate - KEM 09.0039X

General

  • Functional Description - The analogue fixed camera EC-710 from R. STAHL is an uncomplicated surveillance camera for many types of application. Seven versions with different viewing angles are available. The stainless-steel camera enclosure (316L) has degree of protection IP69K and can be cleaned easily and quickly with a pressure washer. The camera is also resistant to shock and vibration and suitable for extreme temperatures ranging from -40 °C to +75 °C, making it ideal for surveillance systems in rough ambient conditions. The low power consumption saves energy, and since the camera is also low-maintenance, it is ideal for independent surveillance. Certified for installation in hazardous zones 1 / 2 / 21 / 22 according to ATEX, IECEx, NEC, CEC and TR-EAC, the camera can be installed world-wide.
  • Highlights - Analogue compact camera with fixed focus Certified acc. to ATEX, IECEx, NEC, CEC and TR EAC for almost worldwide operation in hazardous areas The world's smallest explosion proof camera: only 55 mm Extremely robust: seawater-proof and resistant to shock and vibration, degree of protection IP69K, suitable for extreme temperature ranges
  • Product Description - Compact camera Stationary camera
  • Product Type - EC-710-052P
  • Title Product Variant Technical Data - EC-710-052P
  • WebCode - EC710A

Mechanical Data

  • Cable length - 5.00 m
  • Degree of protection (IP) - IP68, 69K
  • Enclosure material - 1.4404 stainless steel
  • Feature - GRP camera bracket included
  • Integrated Wiper - No
  • Version - Fixed viewing angle
  • Weight - 0.700 kg
1 - 7 of 7 Part Numbers
Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
