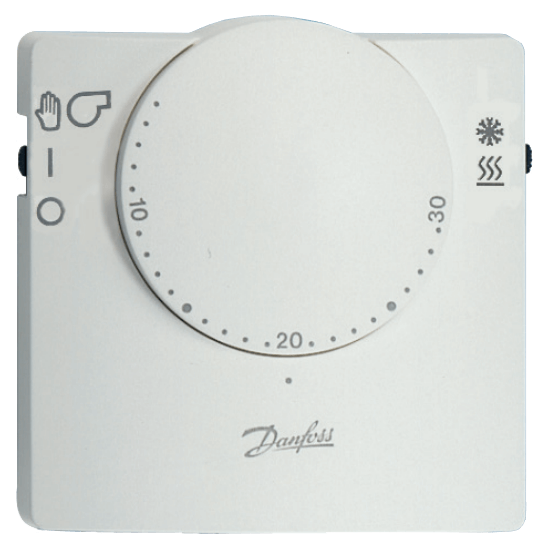

Danfoss Electronic Room Thermostat, RET230

RET230 Electronic Room Thermostat

Brand: Danfoss
Add Product to My Catalog

Danfoss Electronic Room Thermostat, RET230
This range of thermostats is aimed primarily at the heating and air conditioning market, where there is a demand for enhanced functionality. All models feature different combinations of supplementary function switches which are accessible to the user.
  • RET230 LS: This thermostat, which can be used in either heating or cooling systems, incorporates a manual switch which allows the thermostat output to be switched off.
  • RET230 C3: Designed for use with cooling only fan coil units, the RET230 C3 incorporates a combined system isolation switch and Fan Auto/Fan Continuous switch. The latter allows the user to decide if the fan should run continuously or only when there is a demand for cooling. A second three position switch allows the user to select one of three fan speed settings.
  • RET230 C02: Designed for use in two-pipe changeover fan coil unit systems, the RET230 C02 incorporates a manual Heating/Cooling (Winter/Summer) switch which allows the thermostat to operate as a cooling thermostat in the summer and a heating thermostat in the winter. A second two position switch allows the user to turn the thermostat output off if so desired.
  • RET230C03: Designed for use in two-pipe changeover fan coil unit systems, the RET230 C03 incorporates a manual Heating/Off/ Cooling (Winter/Off/Summer) switch which allows the thermostat to operate as a cooling thermostat in the summer and a heating thermostat in the winter. A second three position switch allows the user to select one of three fan speed settings.

1 - 4 of 4 Part Numbers
087N700700
087N700700
  • Type - Thermostat for Use in Non-Changeover Systems
  • Model - RET230LS
087N702200
087N702200
  • Type - Thermostat for Use in Systems Having Central Changeover from Heating to Cooling
  • Model - RET230C02
087N702300
087N702300
  • Type - Thermostat for Use in Non-Changeover Systems
  • Model - RET230C3
087N703200
087N703200
  • Type - Thermostat for Use in Systems Having Central Changeover from Heating to Cooling
  • Model - RET230C03
1 - 4 of 4 Part Numbers

View_Details

Specifications

Brand

Approvals & Certifications

  • ErP Class 1

Electrical Rating

  • 2 (1) A

Indication

  • LED Status Indicator

Operating Voltages

  • 220/240 Vac, 50/60 Hz

Switch Quantity

  • 1 Switch

Switch Type

  • SPDT

Temperature Range

  • 5° to 30° C (41° to 86° F)

Documentation

Data Sheets
