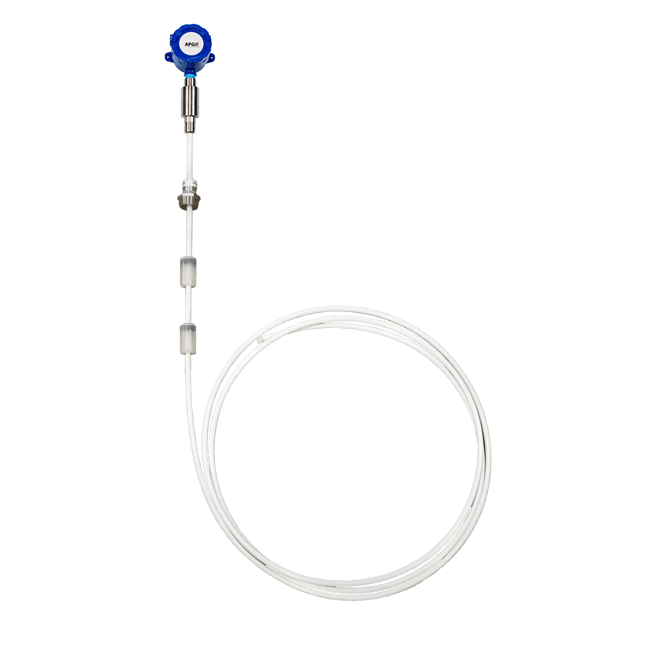

MPXI-F PVDF Magnetostrictive Level Sensors

Brand: Automation Products Group - APG

The Explosion-Proof MPXI-F features a flexible proprietary-PVDF braided-tubing stem for easy installation in tall tanks.



Features
  • Multiple output choices
  • Tank cloud compatible
  • Quick start-up
  • Flexible



Specifications

Certifications

  • NEMA 4X, IP66
  • cCSAus Certificate
  • ATEX Certificate Sira
  • IECEx Certificate

Current Draw

  • 4-20 mA, Single / Dual float: 22 mA / 44 mA (max)
  • Modbus (single or dual float): 15 mA (typ)
  • High Level Switch, closed / open: 7-9 mA / 0-1 mA

Distance Accuracy

  • 4-20 mA: Greater of ± 0.05 % Full Scale or 1 mm
  • Modbus: ± 0.04 in. (± 1 mm)

Electrical

  • Reverse polarity protection
  • CE compliant to EN 61326

Environmental

  • NEMA 4X
  • IP66

Housing Material

  • Cast aluminium
  • Epoxy Coated

Operating Temperature

  • -40° to 185° F, -40° to 85° C

Programming

  • RS-485: Optional RST-6001 USB to RS-485 converter
  • 4-20 mA: Factory set or RST-4100 programming module

Resolution

  • 4-20 mA: 14 bit DAC (1 mm)
  • Modbus: 0.04 in. (1 mm)

Stem Material

  • 5/8" Ø Flexible Tubing, proprietary PVDF formulation

Stem Length

  • 10 - 50 ft (3.05 - 15.2 m)

Supply Voltage

  • 12-24 VDC (Modbus), 24 VDC (4-20 mA)

Temperature Accuracy

  • Digital Temp Sensor: ± 1° C
  • API 18.2 Temp Sensors: ± 0.25° C over -40° - 85° C, ± 0.13° C over +20° - 70° C

Output

  • Single or dual loop-powered 4-20 mA
  • Modbus RTU (RS-485), optional temperature sensors
