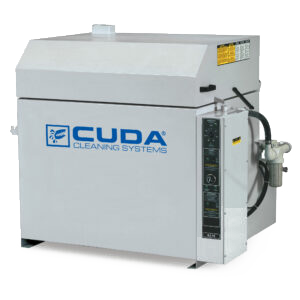

SJ-15 Top-Load Automatic Aqueous Parts Washer
Brand: Cuda USAThe newest addition to the Cuda top load line-up, the SJ-15 uses a patented spray wash technology which eliminates the need for a drive motor, gears and pulleys.
Using a water-propelled spray arm with 23 nozzles that spin around a stationary parts basket, parts are hit from every angle while being cleaned. It has a 350-lb. load capacity, and a basket dimension of 32" x 21", 90 gallon sump capacity, 3 HP pump motor delivering 37 GPM @ 30 PSI.
Aqueous parts washers clean faster and better without using harmful solvents!
Cuda automatic parts washers provide a safe and efficient solution to cleaning parts because they don’t use harmful cleaning solvents to clean.
Our automatic parts washers also provide a time-saving, easy parts cleaning solution for your staff allowing them to simultaneously clean parts while performing other tasks.
Features- Integrated Oil Skimmer
- Spin Jet Spray Arm
- Removable Debris Screen
- Low Water Shut-off
Specifications
Brand
Working Height
- 17.5"
Basket Dimensions
- 32" x 21"
Load Capacity
- 350 lb
Number of Spray Nozzles
- 23
Pump Motor
- 3 hp - Vertical - Seal-less
Sump Capacity
- 90 gal
Pump Capacity
- 50 GPM - 45 PSI
Voltage / Phase
- 230 V / 1-phase
- 208 V / 1-phase
- 230 V / 3-phase
- 208 V / 3-phase
- 460 V / 3-phase
- 575 V / 3-phase
Amperage
- 38 - 230 V (1-phase)
- 42 - 208 V (1-phase)
- 23-230 V (3-phase)
- 25-208 V (3-phase)
- 11 - 460 V (3-phase)
- 9 - 575 V (3-phase)
Machine Dimensions
- L x W x H
- 51" x 48" x 49"
Shipping Dimensions
- L x W x H
- 73" x 60" x 60"
Optional Accessories
- Automatic Water Fill
- Hour Meter
- Detail Brush
- Power Brush
- Skimmer Timer - 24 hour/7 day
- Cuda Vac 110
- Pressure Gauge
- Temperature Gauge
- Small and Medium Parts Basket
