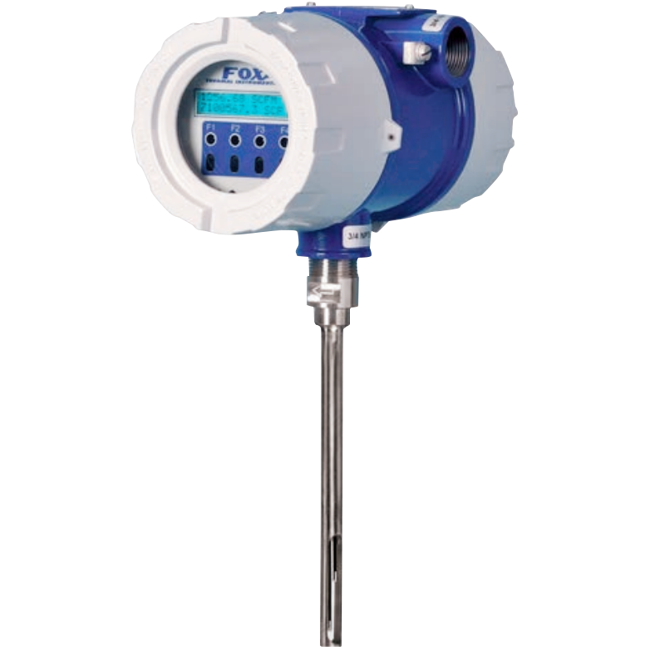

Fox Thermal Thermal Gas Mass Flow Meter, Model FT3

Model FT3 Thermal Gas Mass Flow Meter

Brand: Fox Thermal Instruments
Add Product to My Catalog

The Model FT3 was designed with our oil and gas customers in mind.

This meter is Quad O (OOOO) compliant and is perfect for use in flare gas applications along with other fuel gas measurement.
Features
  • Measures process gas flow rate/total and temperature
  • A USB connection is standard (free FT3 View™ Software); Optional HART and RS485 Modbus communication protocols
  • Optional on-board display and configuration panel
  • Equipped with the Power Pro™ thermal mass flow sensor
  • One discrete output is programmable for either pulse (for totalizing flows) or alarms
  • One discrete input to reset total or select a different calibration on 2 gas curves
  • 4-20 mA output proportional to mass flow rate
  • Click the Approvals tab for Model FT3 Agency Approvals.
  • Calibration Validation with the CAL-V™ and Zero CAL-CHECK® features.
  • NIST-traceable calibration
  • Wide measurement range
  • 1% R + 0.2% FS flow accuracy
  • 24 VDC or optional 100 to 240 VAC in local or remote enclosures
  • Insertion, Inline & Remote Styles
  • Modbus or HART options
  • Calibration Validation
  • FM/FMc, ATEX and IECEx approvals

View_Details

Specifications

Brand

4-20 mA Loop Verification

  • Simulation Mode used to Align 4-20 mA Output with the Input to Customer’s PLC/DCS.

Calibration

  • Factory Calibration to NIST-Traceable Standards CAL-V™ & Zero CAL-CHECK®: in Situ, Operator-initiated Calibration Validation

Enclosure

  • NEMA 4X (IP68), Aluminum, Dual Conduit Entries with 3/4" NPT or Optional M20 x 1.5 mm. Cabling to Remote Enclosure: 5-Conductor, 18 AWG, Twisted, Shielded, 100 ft max.

Flow Accuracy

  • Inline - ± 1 % of Reading ± 0.2 % of Full Scale. 8 Diameters of Straight, Unobstructed Pipe Upstream & 4 Downstream.
  • Insertion - ± 1 % of Reading ± 0.2 % of Full Scale. 15 Diameters of Straight, Unobstructed Pipe Upstream & 10 Downstream.

Flow Range

  • Inline - Pipe Size scfmNm³/hour 0.25" 0 - 7.5 0 - 11.8 0.5" 0 - 125 0 - 200 0.75" 0 - 220<
  • Insertion - Pipe Size scfmNm³/hour 1.5" (40 mm) 0 - 840 0 - 1,325 2" (50 mm) 0 - 1,400 0 - 2,210 2.5" (63 mm) 0 - 2,0
  • Note: Standard Conditions of Air at 70° F & One Atmosphere. Consult Factory for Other Gases, Pipe Sizes, & Flow Ranges Other Than Those Listed.

Flow Rates

  • 15 to 60,000 SFPM (0.07 to 280 NMPS) - Air at 70° F (20° C) & 1 ATM

Flow Repeatability

  • ± 0.2 % of Full Scale

Flow Response Time

  • 0.9 seconds (One Time Constant)

Flow Units (Field Selectable)

  • scfm, scfh, NMPS, Nm³/M, Nm³/hour, Nm³/D, NLPS, NLPM, NLPH, MCFD, MSCFD, SCFD, MMSCFD, MMscfm, SMPS, Sm³/hour, LB/S, LB/M, LB/H, LB/D, KG/S, KG/M, KG/H, SLPM, SFPM, MT/H, Sm³/M

Gas Pressure (Maximum)

  • Check with Factory for Higher Pressure Options. Note: Pressure Ratings Stated for Temperature of 100° F (38° C).
  • Inline - NPT(0.25" - 3"): 500 psig (34.5 barg) 150# Flange: (1/2" - 6") 230 psig (16 barg)
  • Insertion - 500 psig (34.5 barg)

Input Power

  • 24 Vdc (± 10 %), 0.7 Amps (Standard DC Power) 100 to 240 Vac ~(+10 %-15 %), 50/60 Hz, 0.2 Amps (with AC Power Option).Note: Fluctuations of AC & DC Power Supply are Not to Exceed ± 10 % of Rating. Class I Equipment (Electri

Inputs & Outputs

  • All Outputs & Communication Circuits are Galvanically Isolated. 4-20 mA Output One is Proportional to the Measured Flow Rate.Fault Indication Per NAMUR NE43. 4-20 mA Output Two is Programmable for Temperature or Flow Rat

Installation

  • Inline - Compression Fitting Included with Flow Body.
  • Insertion - Fox Thermal-supplied Compression Fitting Connects to Customer-supplied 3/4" Female Coupling Welded to Pipe.

Optional Serial Communication

  • HART or RS-485 Modbus.

Port

  • Mini USB Communication Port is Standard.

Relative Humidity

  • 90 % RH max.

Retractor Assemblies

  • Packing Gland Assembly: 125 psig (8.6 barg) Max. High Pressure (Crank) Retractor: NPT 600 psig (41.4 barg), ANSI 150 Flange & ANSI 300 Flange, No Valve Supplied.

Sensor Material

  • 316 Stainless Steel Standard. Hastelloy C-276 Optional.

Software:

  • The Free PC-based Software Tool - FT3 View™ - Provides Complete Configuration, Remote Process Monitoring, & Data Logging Functions.

Temperature Accuracy

  • ± 1.8° F (± 1.0° C) -40° to 250° F (-40° to 121° C), ± 3.6° F (± 2.0° C), 250° to 650° F (121° to 343° C), 60 SFPM Min..

Temperature by Enclosure: (See Approvals Tab)

  • Without Display or AC Power Supply: -40° to 158° F (-40° to 70° C) with Display and/or AC Power Supply: -4° to 158° F (-20° to 70° C) Remote Sensor Junction Box: -40° to 212° F (-40° to 100° C)

Temperature by Sensor Type: (See Approvals Tab)

  • ST Sensor: -40° to 250° F (-40° to 121° C) HT Sensor: -40° to 650° F (-40° to 343° C)

Turndown

  • Up to 1000:1, 100:1 Typical

  • Textile Mills
  • Sub-metering
  • Check meters
  • Shield gas monitoring

Documentation

Data Sheets

Product Manuals

Brochure

Document

FT3 Inline Models

FT3 Insertion Models

Retractors
