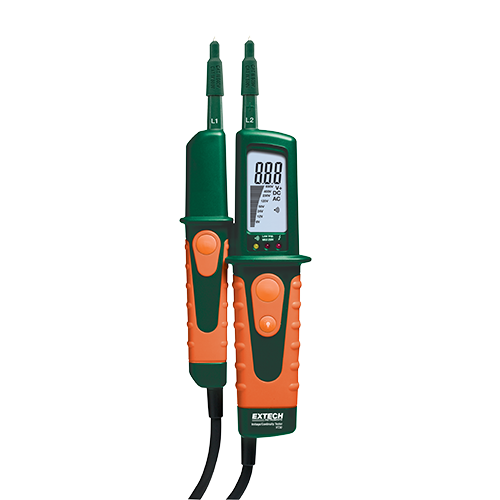

VT30 LCD Multifunction Voltage Tester
Brand: ExtechThe VT30 is a voltage, continuity and phase tester with built in flashlight and backlit digital display with bar graph.
The tester features a double molded IP64 housing, polarity detection with LEDs for positive and negative DC and a CAT III 600 Volt / CATIV 600 Volt safety rating.
This product is complete with a one year warranty, 2 AAA batteries, protective cap, and pouch case.
Features- Large backlit LCD display.
- AC voltage (0 to 480V) and DC voltage (0 to 690V).
- Polarity detection with LEDs for positive and negative DC.
- Continuity Test with audible tone.
- Phase rotation test for motors.
- Two handed operation for low impedance testing.
- Built-in flashlight for testing in tight areas.
- Rubberized double-molded IP64 housing.
Specifications
Brand
AC Voltage
- 0 to 480 V
Accuracy
- ACV ± (1.5 % of Reading + 5d), DCV ± (1.0 % of Reading + 3d)
ACV Frequency Range
- 50/60 Hz
Battery Life
- Approximately 8 Hours Continuous Use Typical
Continuity Test
- Range 0 to 200 kΩ, Guaranteed on < 50 kΩ
DC Voltage Range
- 0 to 690 V
Dimensions
- 9.4 x 3 x 1.6" (240 x 78 x 40 mm)
Input Impedance
- 1 MΩ (Approximately)
LCD Display
- 1999 Counts (3-1/2-Digits) with Bargraph & Backlight
LCD Enable Input Voltage
- > 4.5 Vac/dc
Low Impedance Test
- 12-250 Vac/dc, Impedance < 6 kΩ
Maximum Measuring Current
- ≤ 1.0 mA (400 Vac), ≤ 1.5 mA (690 Vdc)
Operating Humidity
- 10 to 85 % RH, Non-Condensing
Operating Temperature
- 14° to 131° F (-10° to 55° C)
Operation Time
- 5 s < 250 Vac/dc
Overvoltage Protection
- 480 Vac / 690 Vdc
Power Supply
- 2 x "AAA" 1.5 V Alkaline Batteries
Range Selection
- Automatic
Resolution
- 1 Volt
Response Time
- Updates 2-3 times/sec
Storage Temperature
- -22° to 140° F (-30° to 60° C)
Weight
- 9.2 oz. (260 g)
