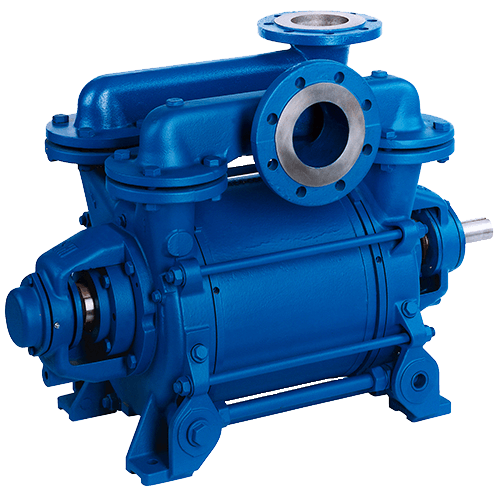

LEH Liquid Ring Vacuum Pump
Brand: Flowserve SIHILiquid ring vacuum pumps of the series LEH are single-stage displacement pumps and have a simple but robust construction.
Features- Non-polluting due to nearly isothermal compression.
- Oil-free, as no lubrication is in the working chamber.
- Handling of nearly all gases and vapors.
- Small quantities of entrained liquid can be handled.
- Easy maintenance and reliable operation.
- Low noise and nearly free from vibration.
- Wide choice of material, therefore applicable nearly everywhere.
- Internal service liquid return; adjustable from the outside.
- Protection against cavitation as standard.
- Incorporated dirt drain.
- Incorporated central drain.
- No metallic contact of the rotating parts.
Specifications
Brand
Operating Parameters
- Flows to 5150 m³/h (3030 CFM)
- Service Liquid Max. admissible Temperature 60° C (140° F)
- Suction Pressures to 33 mbara (0.5 psia)
- Temperatures to 100° C (212° F)
Size Range
- From DN 125 (5 in) to DN 250 (10 in)
