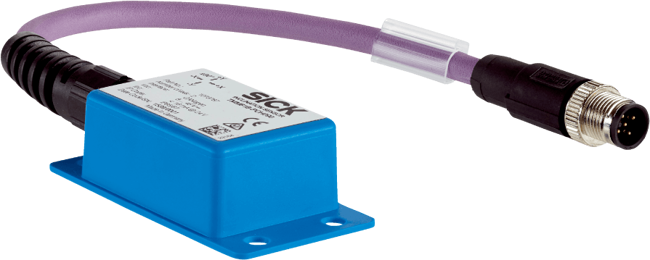

TMS/TMM61 Inclination Sensor
Brand: Sick AGThe TMS61 one-dimensional inclination sensor and the TMM61 two-dimensional inclination sensor are setting new standards with respect to size, flexibility, and performance.
In their small, rugged plastic housings, the sensors offer excellent resolution and accuracy – what's more, this is achieved over the entire measuring range and in an extremely wide range of ambient conditions.
The CANopen interface enables a whole host of device parameters to be adapted, allowing the sensor to be perfectly tailored to the application.
The new PGT-12-Pro handheld programming tool from SICK makes configuration much easier.
As a result, the user is ready to go in just a few clicks and can cut out the time-consuming task of configuring the sensor via the control system.
Features- Inclination measurement in two axes without mutual interference
- Single-axis inclination measurement over 360° with configurable zero point
- Flexible adaptation to the application via the CANopen interface or PGT-12-Pro handheld programming tool
- Reliable output signal thanks to configurable digital filter
- Precise leveling thanks to high accuracy over the entire measuring range
- Compact design for applications with limited space
- Can also be used in the harshest ambient conditions thanks to fully encapsulated electronics
Specifications
Brand
Certifications & Approvals
- CE
Number of Axis
- 1 / 2
Communication Interface
- CANopen
Measurement Range
- 1-Dimensional 360°
- 2-Dimensional ± 90°
Housing Material
- Plastic (ABS)
Connection Type
- Cable, 5-Wire, with Male Connector, M12, 5-Pin, 0.2 m
Programmable/Configurable
- Over PGT-12-Pro
Accuracy
- ± 90°, 2-Dimensional, ≤ ± 60° Typical ± 0.1°, Max. ± 0.2°
- ≤ ± 80° Typical ± 0.2°, Max. ± 0.3°
- 360°, 1-Dimensional Typical ± 0.15°, Max. ± 0.25°
- Agricultural And Forestry Machinery
- Construction Machinery And Special-purpose Vehicles
- Solar thermal Energy And Photovoltaics
- Automated Guided Systems
- Crane And Lifting Technology
- Wind Power Plant
