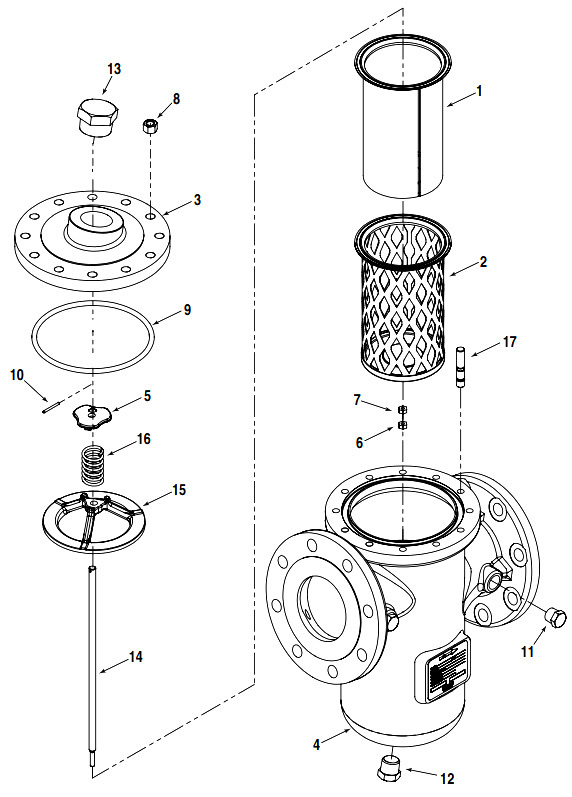

Strainer, 3 and 4-inch, E Type - Spare Parts.jpg

Strainer, 3 and 4-inch, E Type - Spare Parts

Brand: TechnipFMC
Add Product to My Catalog

Smith Meter® E-Type Steel Strainers are necessary to provide protection for metering systems against dirt and other foreign material.

The large screen area and stream-lined flow path (10° slant) minimize pressure drop.

The sturdy basket can withstand a 50 psi differential without bursting and is easily removed for cleaning
Features
  • Streamlined flow path for lower pressure drop
  • Large screen area for less frequent cleaning
  • Separable inner basket for easy cleaning
  • Pressure Taps (½ NPT) upstream and downstream nozzles
  • Flow Orientation can be installed horizontally or vertically
  • Drain threaded NPT

1 - 12 of 24 Part Numbers
002068-400
002068-400
Nut, ¼ - 20 - Item 7
514888-005
514888-005
Basket, Outer, Expanded Metal - Item 2
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-004
514892-004
Basket, Inner: 4 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-010
514892-010
Basket, Inner: 10 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-020
514892-020
Basket, Inner: 20 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-040
514892-040
Basket, Inner: 40 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-060
514892-060
Basket, Inner: 60 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-080
514892-080
Basket, Inner: 80 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514892-100
514892-100
Basket, Inner: 100 Mesh - Item 1
If utilizing the triple basket, replacement parts will consist of the following:
  • 40 mesh Standard Inner Basket: 514892-040
  • 6 mesh Outer Basket: P8000014927
  • 10 mesh Special Liner: 553441-002
514899-001
514899-001
Rod - Item 14
514900-001
514900-001
Loading Washer - Item 5
514901-001
514901-001
Spider - Item 15
1 - 12 of 24 Part Numbers

Specifications

Brand

Design/Fabrication

  • According to PED 97/23/EC

Flanges

  • Raised Face Suitable to fit with: DIN EN PN 16 or Standard ANSI 150 lb flanges

Air Vent

  • 1/2" NPT plugged

Differential Pressure Taps

  • 1/2" NPT plugged

Inner Liner

  • Choice of 10, 20, 40 (Standard), or 80 mesh Stainless Steel

Seals/Temperature Limits

  • Buna Seals: -29° to 100° C
  • Viton Seals: -12° to 100° C
  • PTFE Seals: -29° to 100° C

Outer Basket and Internals

  • Zinc-plated Carbon Steel and Cast Iron

Documentation

Parts List
